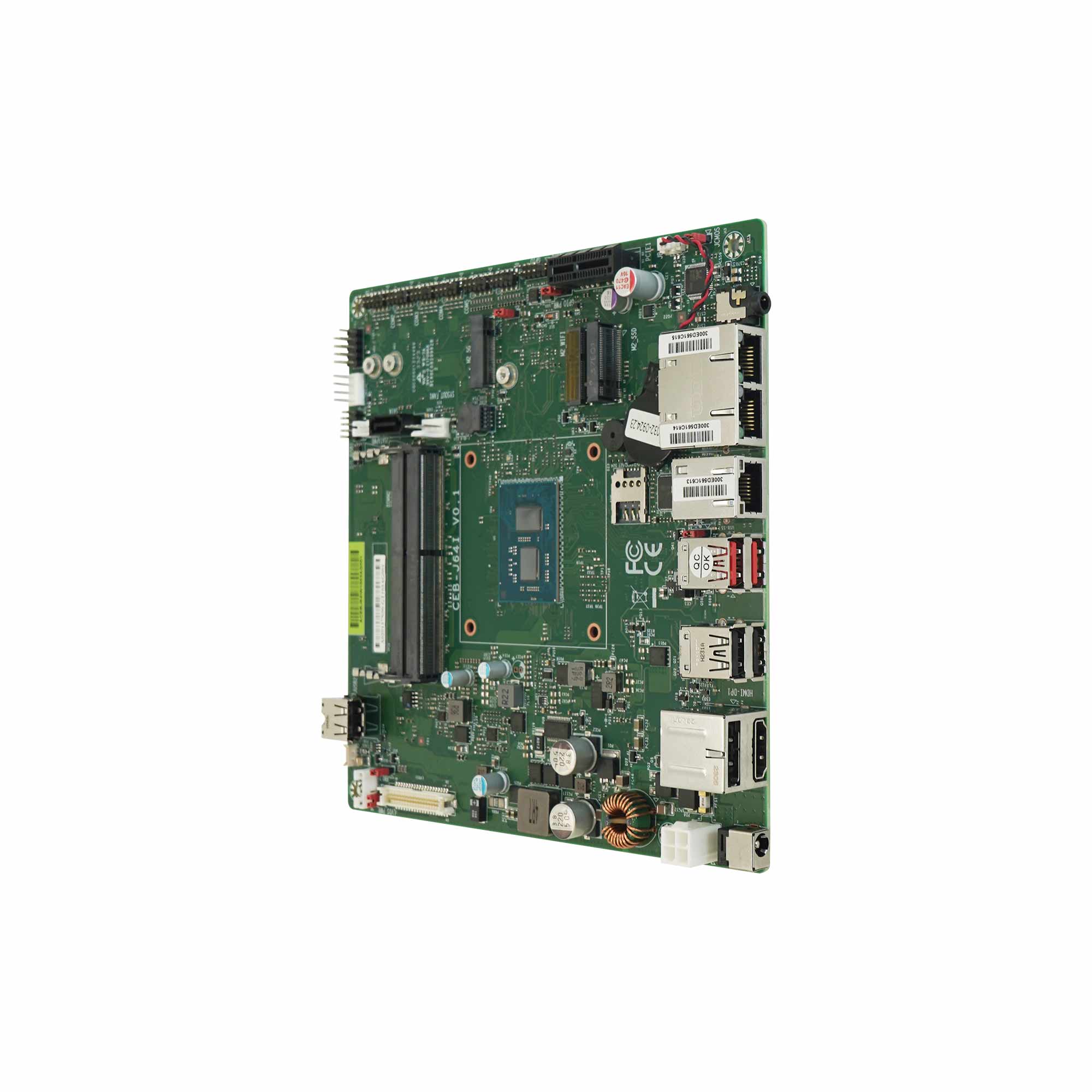

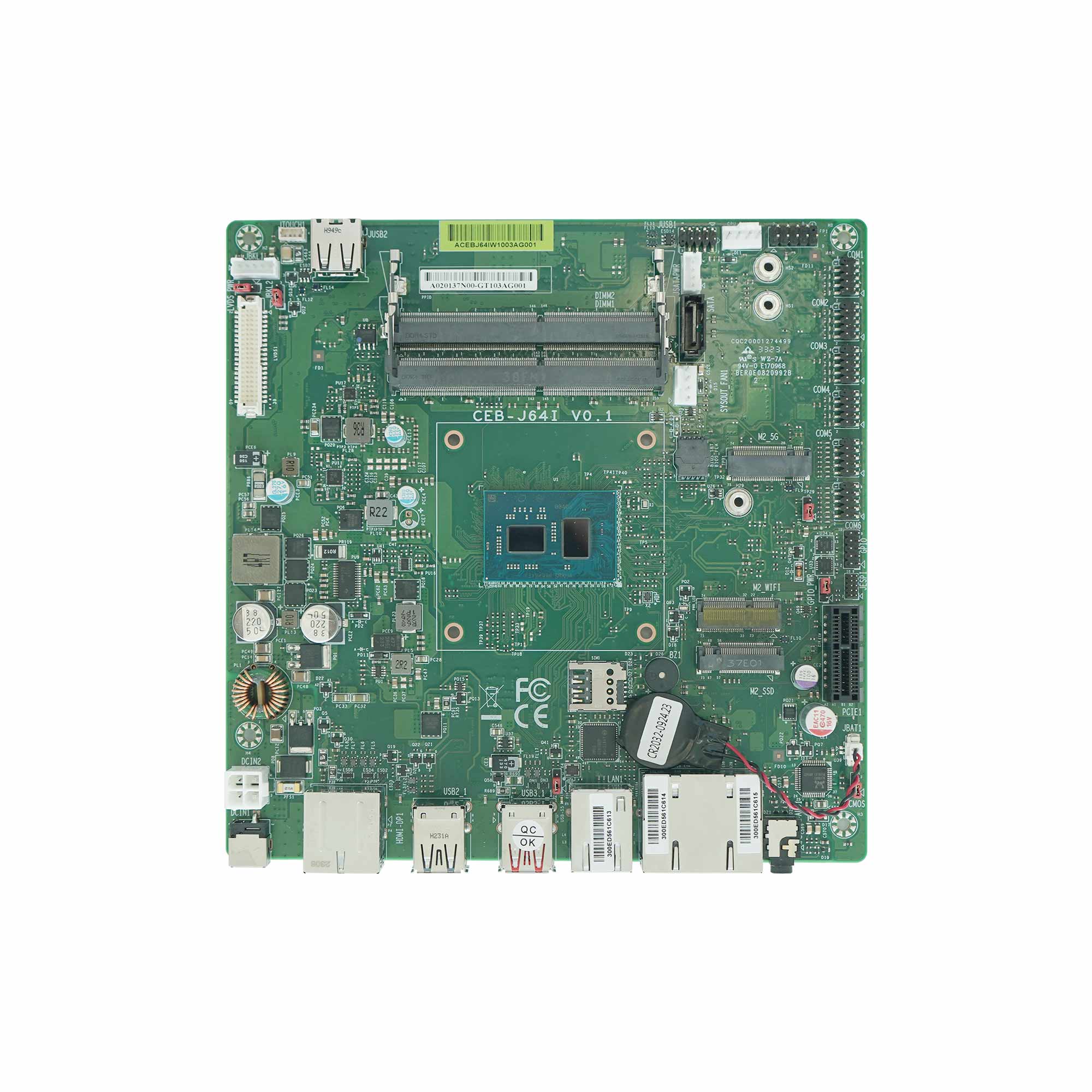

Mini-ITX工业主板 CEB-J64I-W10X
详细介绍
Intel® Celeron® Processor
J Series 4核 J6412 2.0GHz(up to 2.60 GHz), TDP 10W
支持2个DDR4
SO-DIMM卡槽, 内存最高可达32GB
支持PCIe
X1 (Gen2）, M.2 扩展
宽压设计,
支持12-24V的 DC-IN 电压输入
支持1x
Intel® 210
AT(LAN1) （10/100/1000 Mbps)，2 x Intel® 226V
colay 225V (LAN2&LAN3) (10/100/1000 /2500Mbps)
支持1
x 8bit GPIO
支持8
x USB（2 x USB3.1 Gen2，6 x USB2.0）, 6 x COM (4 x RS232/422/485, 2 x RS232)
- 产品介绍
- 详细参数
- 产品型录
- 驱动程序
产品介绍：
Intel® Celeron® Processor J Series 4核 J6412 2.0GHz(up to 2.60 GHz), TDP 10W
| 处理器 Processor | Intel® Celeron® Processor J Series J6412 quad-cord 2.0GHz (up to 2.60 GHz), TDP 10W |
| 内存 Memory | 2 x DDR4 3200MHz SO-DIMM Slot, up to 32GB |
| 存储 Storage | 1 x SATA3.0, 1 x M.2 2242 M Key (SATA) |
| 显示 Display | Intel® UHD Graphics for 10th Gen Intel® Processors |
| 网口 Ethernet | 1 x Intel® 210 AT(10/100/1000 Mbps), 2 x Intel® 226V colay 225V (LAN2&LAN3) (10/100/1000/2500 Mbps) |
| 音频 Audio | Realtek® ALC888S/ALC897 HD Audio codec, supports 5.1-channel |
| BIOS | AMI UEFI BIOS |

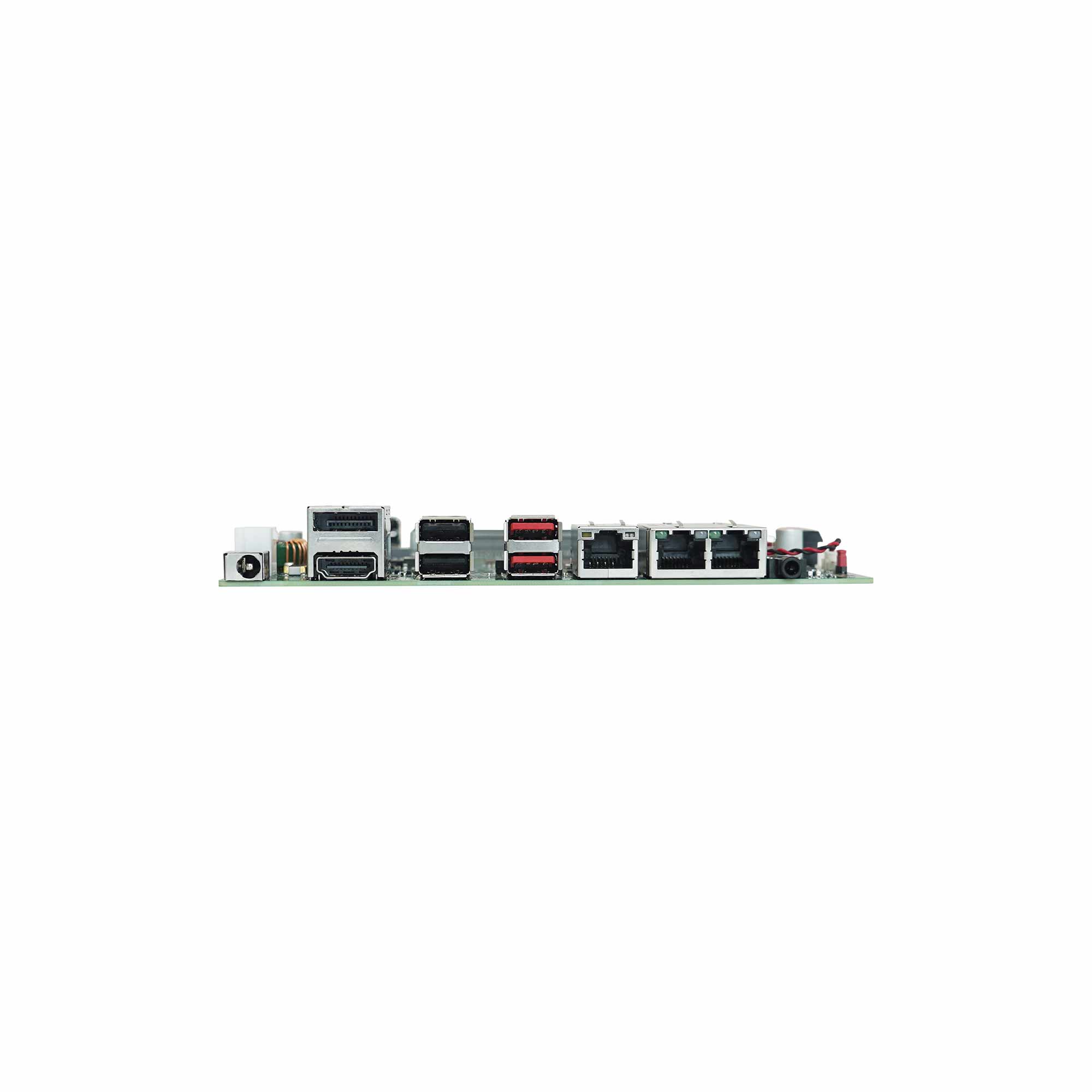

| 外部接口 Rear I/O | 1 x DP1.4a, up to 4096 x 2160 @60Hz 1 x HDMI 2.0, up to 4096 x 2304 @60Hz 2 x USB3.1 Gen2(10Gbps)(支持USB SR Pr o技术), 2 x USB2.0 3 x RJ45 1 x Line out&Mic in(2 in 1 audio combo Jack) 1 x DC-IN Jack |
| 内部接口 Internal I/O | 1 x LVDS: Dual Channel 18/24-bit, up to 1920 x 1200@60Hz 1 x eDP: up to 4096x2160@60Hz (BOM option with LVDS) 4 x RS232/422/485 (with auto flow control), 2 x RS232 4 x USB2.0(1xPin header 2*5, 1xPin header 1*4(Touch), 1 x Type-A） 1 x 8bit GPIO 1 x SATA3.0 1 x CPU_FAN,1 x SYS_FAN 1 x FP(power button, power led, reset, HDD led) 1 x 4-pin (2x2) power connector |
| 扩展接口 Expansion | 1 x M.2 3042/3052 B Key (PCIe3.0 X1/USB2.0) for 5G module 1 x M.2 2230 E Key (PCIe3.0 X1/USB2.0) for WiFi/BT module 1 x M.2 2242 M key(SATA3.0) for SATA SSD 1 x Nano SIM socket（connected toM.2 B Key） 1 x PCIe3.0 X1 |
| 环境 Environment | 操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing |
| 电源输入 Power Input | 宽压12~24V DC-IN |
| 尺寸 Dimensions | 170 x 170 mm (6.75" x 6.75") |
| 操作系统 OS | Windows10, Linux |
| 看门狗 Watchdog Timer | System Reset, Programmable via software from 1 to 255 seconds |
