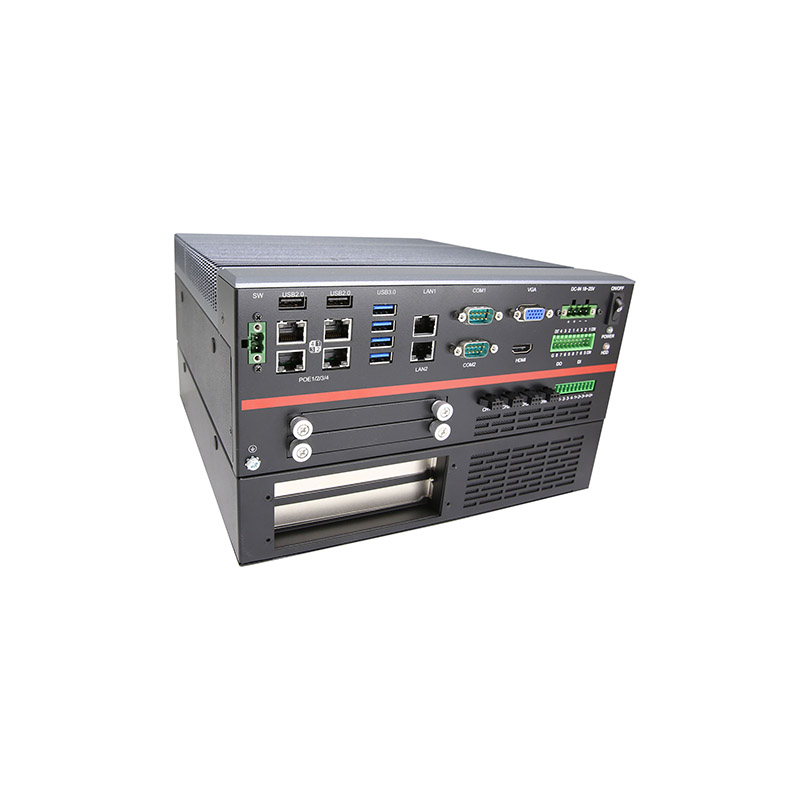

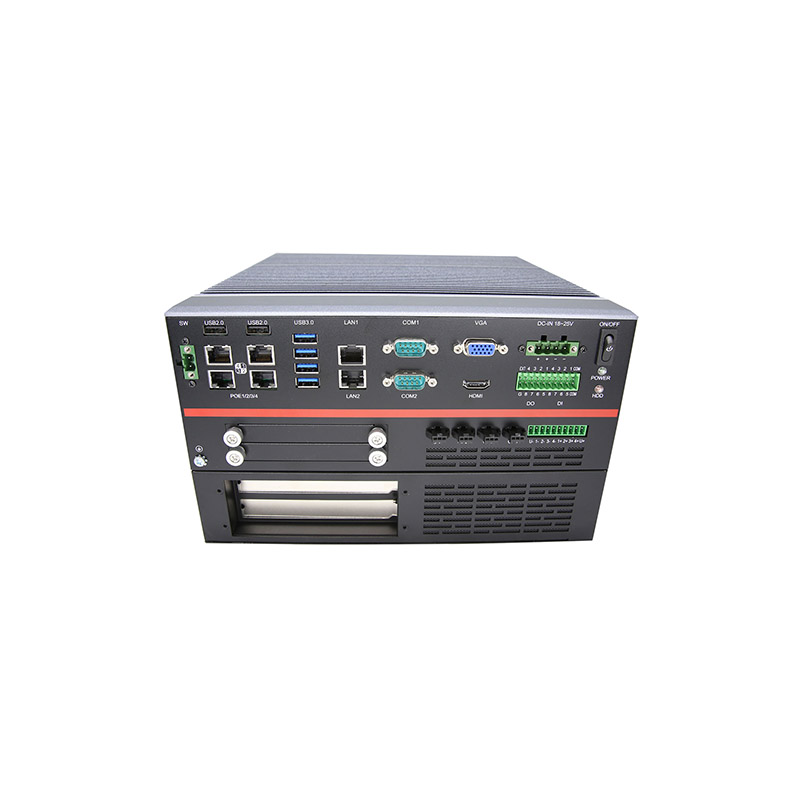

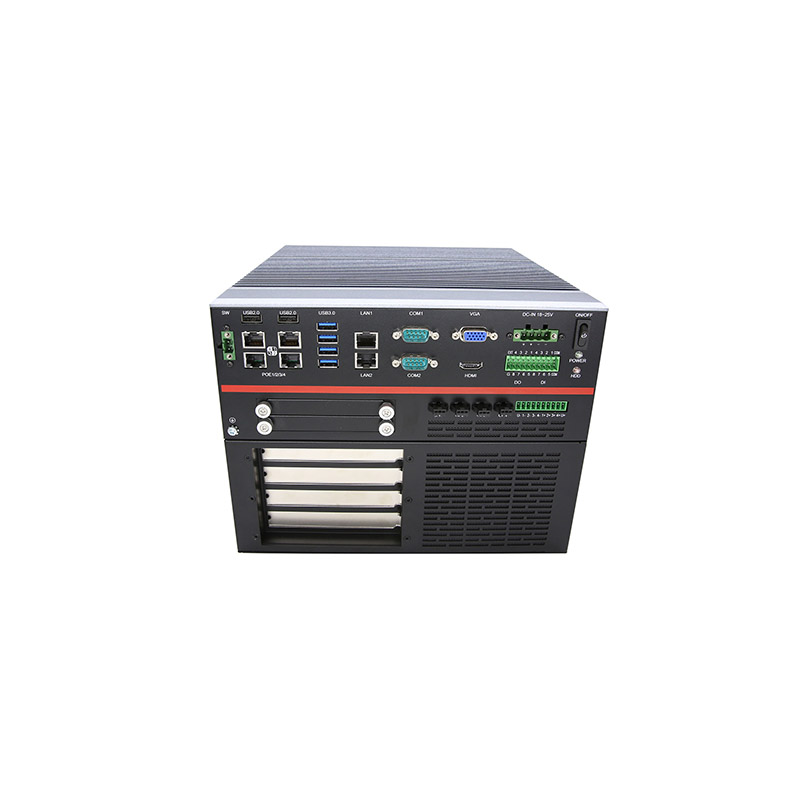

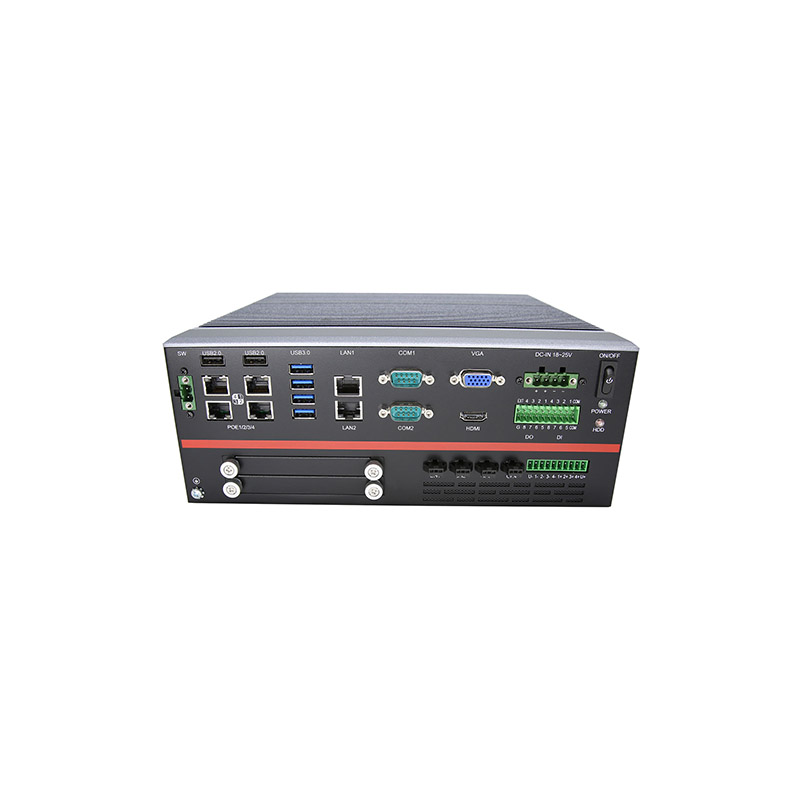

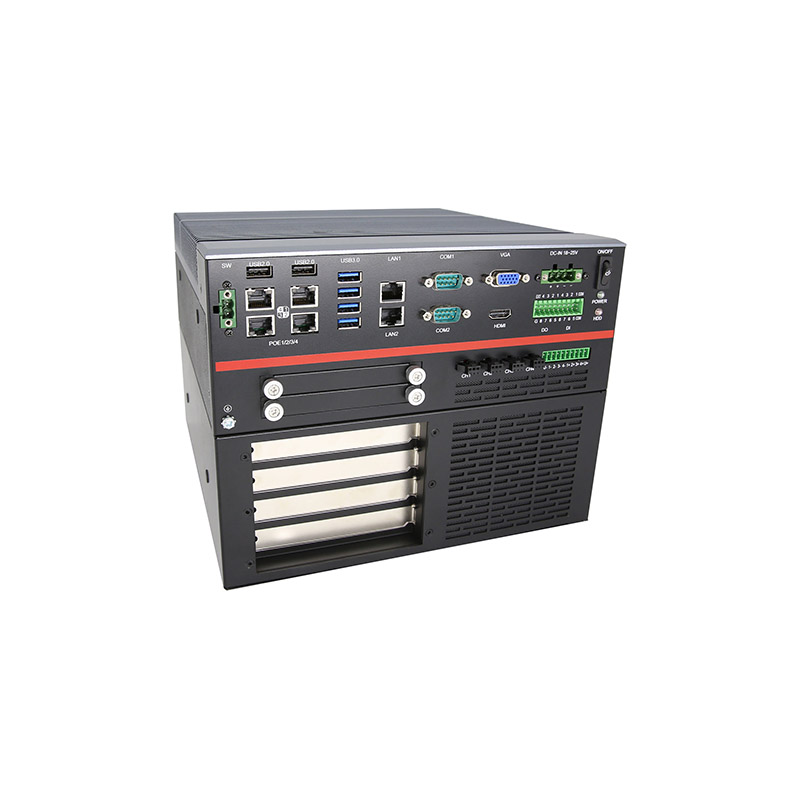

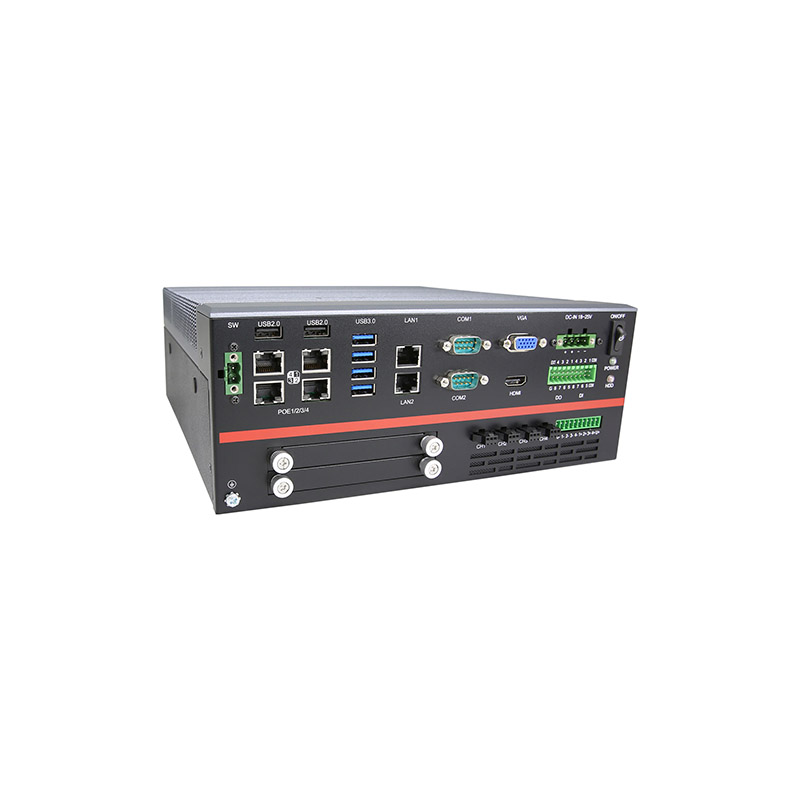

嵌入式工业电脑 CES-EH31-W6XX

Intel^® 第八/九代 Core™ i 台式机处理器（LGA1151针）Intel^® H310芯片组
Intel^® 六口千兆网口，其中四口为POE网口, 单口最大功耗15W
VGA+HDMI 双显示输出
支持光源控制模组(选配)，单口最大功耗60W，4口最大功耗70W
8路光耦隔离输入，8路光耦隔离输出（支持NPN/PNP切换)
2个2.5寸HDD/SSD 可抽取槽
1个Mini-PCIe 可配mSATA SSD或其它USB2.0 信号扩展模块
4个USB3.0 Gen1和2个USB2.0, 内置1个USB2.0 可接插加密狗
1个RS-232/422/485, 1个RS232,1个RS232(可选)

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel® 8/9 Gen. LGA1151 Pentium/Celeron/Core CPU; H310 chipset; 6 x LAN (include 4 x POE); 4 x Lighting Port; 16bit isolated DOI; BT, 4G/5G expansion; 3 x COM; 4 x USB3.0; 3 x USB2.0; 19-24V power input

外部接口 External I/O

网口 Ethernet	1 x Intel^® I211AT GbE (10/100/1000Mbps) 1 x Intel^® I219LM GbE (10/100/1000Mbps)
显示 Video	1 x VGA,max resolution up to 2048 x 1536@50Hz 1 x HDMI 1.4,max resolution up to 4096 x 2304@24Hz
存储 Storage	2 x 2.5" SATA 3.0 Bay for 2.5inch HDD/SSD
POE	4 x Intel^® I211AT GbE (10/100/1000Mbps) 802.3 af,max TDP 15W for each
串口 COM	1 x RS-232/422/485 BIOS adjustable & 1 x RS232 (On board) 1 x RS232(Cable expansion)
USB	4 x USB3.0 Gen1 compatible USB 2.0 2 x USB2.0
DIO	Mode: NPN/PNP (Switchable) 8in8out isolated DIO esponse time ≤ 20ms Input frequency: 1/2 Pin ≤ 200KHz, 3/4/5/6/7/8 Pin ≤ 500Hz High-voltage isolation up to 3000Vrms for DI & 2450Vrms for DO on all channels Driving capacity: 350mA max for NPN mode; 500mA max for PNP mode Support 5-24V isolated input on all channels
光源控制 Lighting Controller	4 Port lighting controller 24V output, PWM adjustment 0-100 levels brightness program adjustment 2.5A max current and 60W TDP for each channel,total 70W on all channels High-voltage isolation up to 3000Vrms on all channels Auto detect, dynamic tuning
按钮 Button	Power Button
指示灯 LED	1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write)
远程开关 Remote ON-OFF	1 x Remote ON-OFF

内部接口 Internal I/O

扩展接口 Expansion	1 x Mini-PCIe, Co-lay with SATA3.0&USB2.0 signal for multiple module expansion 1 x USB2.0 connector for internal dongle
可选扩展接口 ( 两槽扩展卡) Optional (2 slot expansion card)	1 x Mini-PCIe with USB2.0 signal 1 x PCIe x 16 (GPU card length no longer than 248mm ) 1 x PCI 1 x SIM card for 3G/4G module

扩展模组 Extension module

环境 Environmental

操作温度 OperatingTemp.	-10℃ ~ 50℃ 65W CPU Must have 2pcs 60*20 system fan -10℃ ~ 50℃ 35W CPU fanless
存储温度 Storage Temp.	-40℃ ~ 85℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
振动 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
机械冲击 Shock	Operation: 10G@11ms Non-operation: 30G@11ms
电磁兼容 ESD	Contact 6KV, Air 10KV

电源 Power

电源输入 Power Input	19-24V DC, AT/ATX Default Power consumption: Typical 180W; Maximum 330W Phoenix lockable connector Protection of over current/voltage and ereverse
显卡电源 GPU Power supply	1. GPU card TDP ≤ 120W, share power supply with system from 330W adapter 2. GPU card TDP > 120W,additional power supply separate with system (developing)

机构Mechanical

外观 Housing	铝合金 Aluminum Alloy
安装方式 Mounting	桌面式 (Desk-Mount include horizontal and vertical)
尺寸 Dimension	Regular model: 260 x 100 x 270 mm (W x H x D) Two slot expansion model: 260 x 156 x 270 mm (W x H x D)
重量 Weight	Regular model: 4.5kg Two slot expansion model: 5.5kg

认证 Certification

安规认证 Safety Certification

CCC
