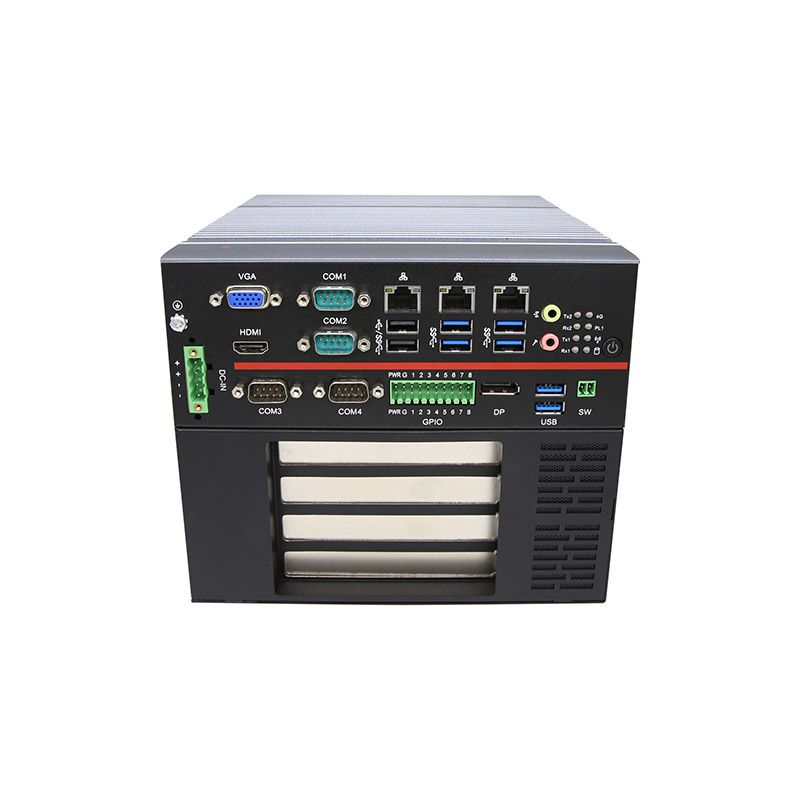

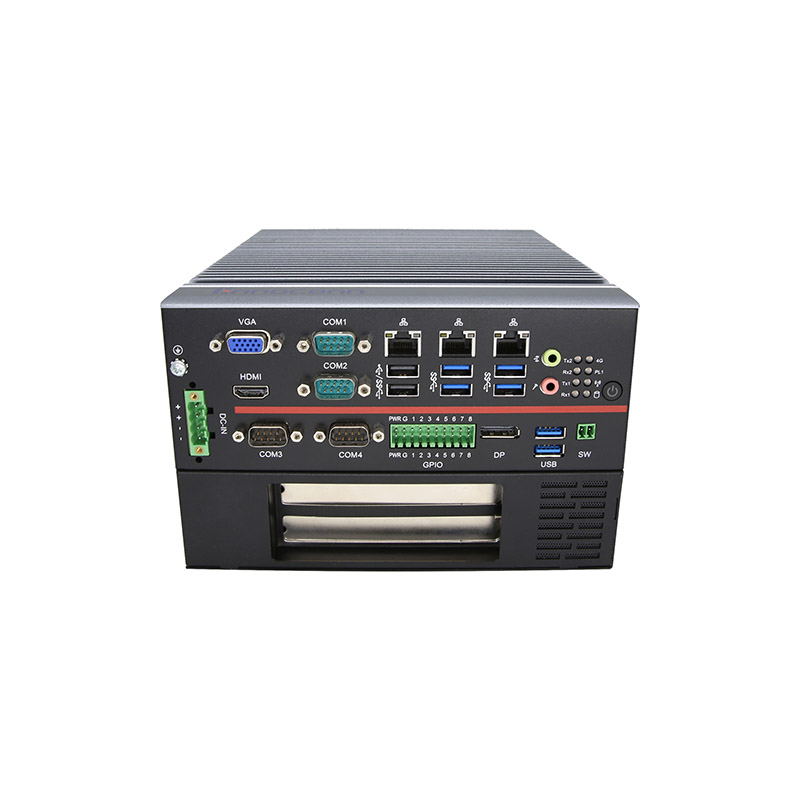

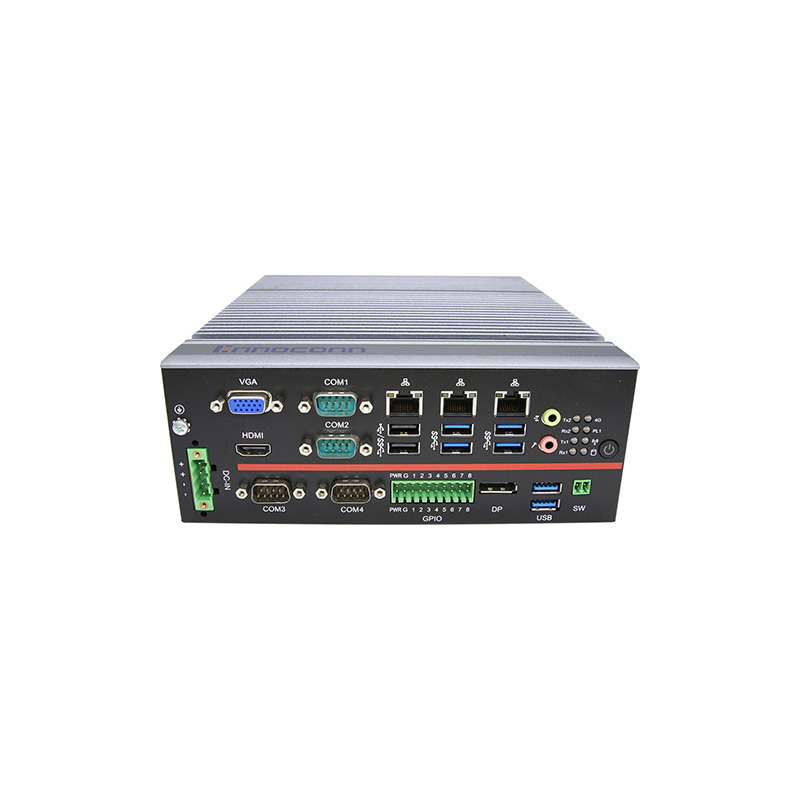

嵌入式工业电脑 CES-EQ17-D340

采用Skylake-S/Kabylake-S系列LGA1151奔腾/赛扬/酷睿处理器，搭载Q170芯片组
支持双通道DDR4 2133MHz SODIMM内存插槽，内存容量最大可达32GB
支持三个千兆网口
支持VGA，HDMI及DP++ 三显
内置2 x 2.5寸HDD/SSD支架
内置1 x Mini-PCIe/mSATA槽，1 x M.2 2230 wifi卡槽及1 x M.2 2242扩展槽，支持多种模块扩展
内置1 x M.2 3042/3052可选卡槽，可扩展5G模块

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel® Skylake-S/Kabylake-S series LGA1151Pentium/Celeron/Core processor, Q170 chipset, 3 x LAN, up to 6 x COM, 10 x USB, 16bit GPIO, Optional 9-36V power input, fanless system

外部接口 External I/O

网口 Ethernet	2 x RJ45, Intel^® i211AT GbE (10/100/1000 Mbps) 1 x RJ45, Intel^® I219LM GbE (10/100/1000 Mbps)
显示 Video	1 x VGA: max resolution up to 1920 x 1200 1 x HDMI: max resolution up to 4096 x 2160 1 x DP++: max resolution up to 4096 x 2304
音频 Audio	1 x Line-out, 1 x Mic-in, Realtek^® ALC269 HD Audio codec
串口 COM	4 x RS232/422/485 auto-flow 2 x RS232 (optional by internal pin head)
USB	8 x USB 3.0, 1 x internal USB2.0(Type-A)
GPIO	1 x 16bit programmable GPIO (default 3.3V, 5V optional)
按钮 Button	1 x Power button
指示灯 LED	1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Yellow blink for Data read or write) 2 x COM1 LED for Rx1 and Tx1 2 x COM2 LED for Rx2 and Tx2 1 x Wifi communication LED (Green blink for communication) 1 x 4G communication LED (Green blink for communication) 1 x PL1 for user defination (can indicate CPU temperature, voltage dectact, etc）
远程开关 Remote ON-OFF	1 x Remote ON-OFF

内部接口 Internal I/O

扩展接口 Expansion	1 x Mini-PCIe slot (PCIe/SATA signal supported) 1 x M.2 2242 slot (PCIe/SATA signal supported 1 x M.2 2230 Key-E slot (Wifi module supported) 1 x M.2 3042/3052 Key-B slot(5G communication module supported)
SIM 卡	1 x 3G/4G SIM socket 1 x 5G SIM socket

扩展模组 Extension module

环境 Environmental

操作温度 OperatingTemp.	-10℃ ~ 40℃ with 0.7m/s air flow (with 65W CPU and industrial SSD) -10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD) 0℃ ~ 30℃ with 0.7 m/s air flow (HDD)
存储温度 Storage Temp.	-40℃ ~ 85℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
振动 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
机械冲击 Shock	Operation: 10G@11ms Non-operation: 30G@11ms

电源 Power

电源输入 Power Input

19-24V DC, 4-pin phoenix connector (9-36V DC optional with power board)

机构Mechanical

外观 Housing	铝合金 Aluminum Alloy
安装方式 Mounting	桌面式 (Desk-Mount), 壁挂式 (Wall-Mount)
尺寸 Dimension	200 x 230 x 78 mm
重量 Weight	3.5kg

认证 Certification

安规认证 Safety Certification

CCC
