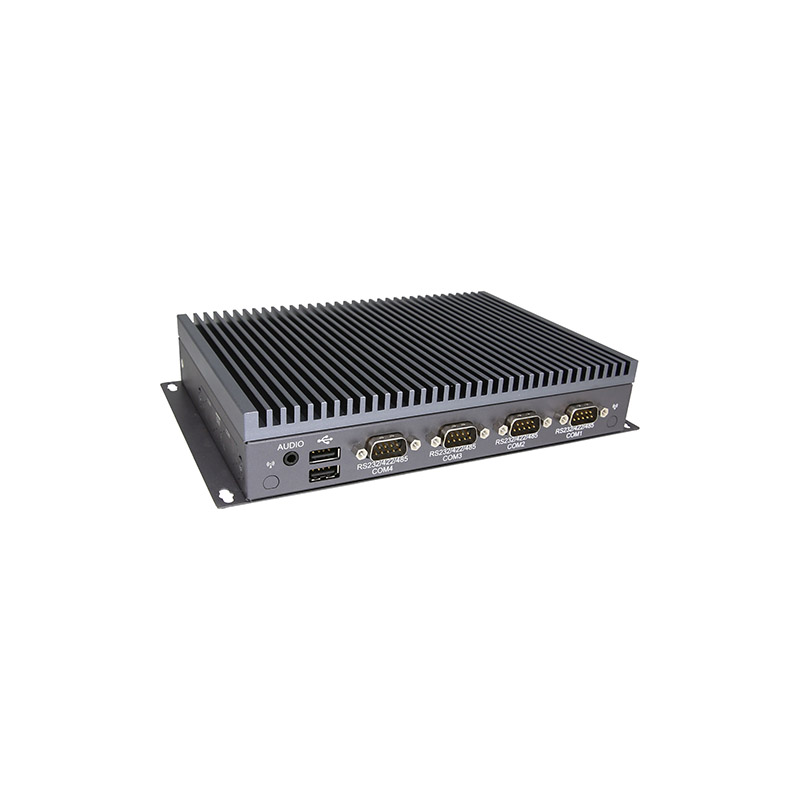

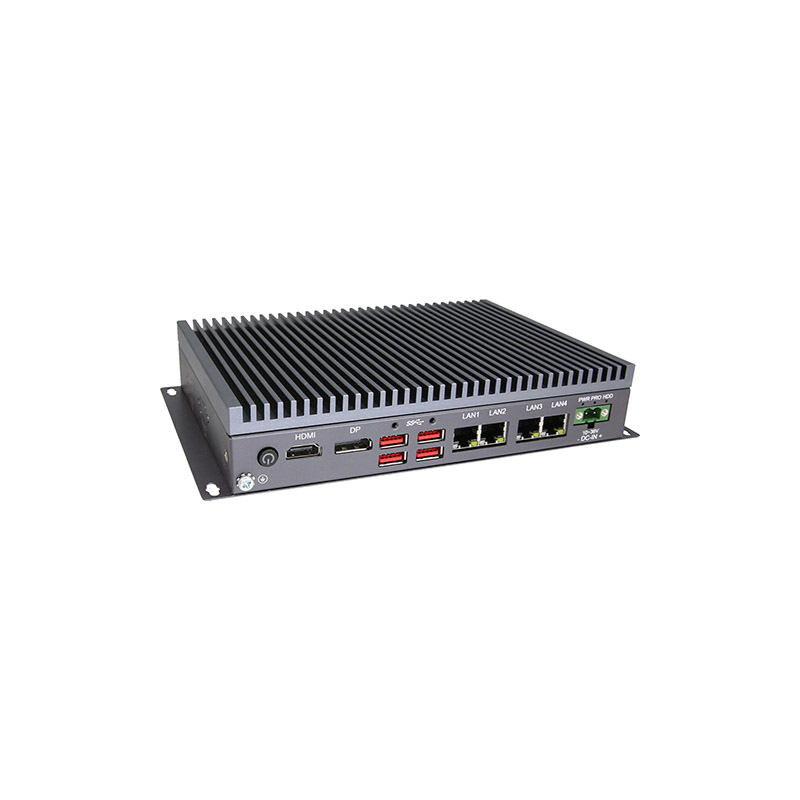

嵌入式工业电脑 CES-R8XX-W44A

板载Intel^® 8th Gen. U Processors i3-8145UE/i5-8365UE/i7-8665UE CPU，主频最大可以达到2.2GHz
支持单通道DDR4 2133/2400 MHz SO-DIMM内存插槽，内存容量最大可达32GB
支持4个千兆网口
支持DP/HDMI 扩展显示
内置1 x Mini-PCIe，1 x M.2 2242，1 x M.2 2230(CNVI)，1 x M.2 3042/3052 多种模块扩展
10~36V宽压设计，可锁附DC-IN接口

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel® 8th Gen. U Processors i3-8145UE/i5-8365UE/i7-8665UE CPU, TDP 15W, 4 x LAN，4 x COM (up to 6 x COM), 6 x USB, 10-36V power input, fan-less system

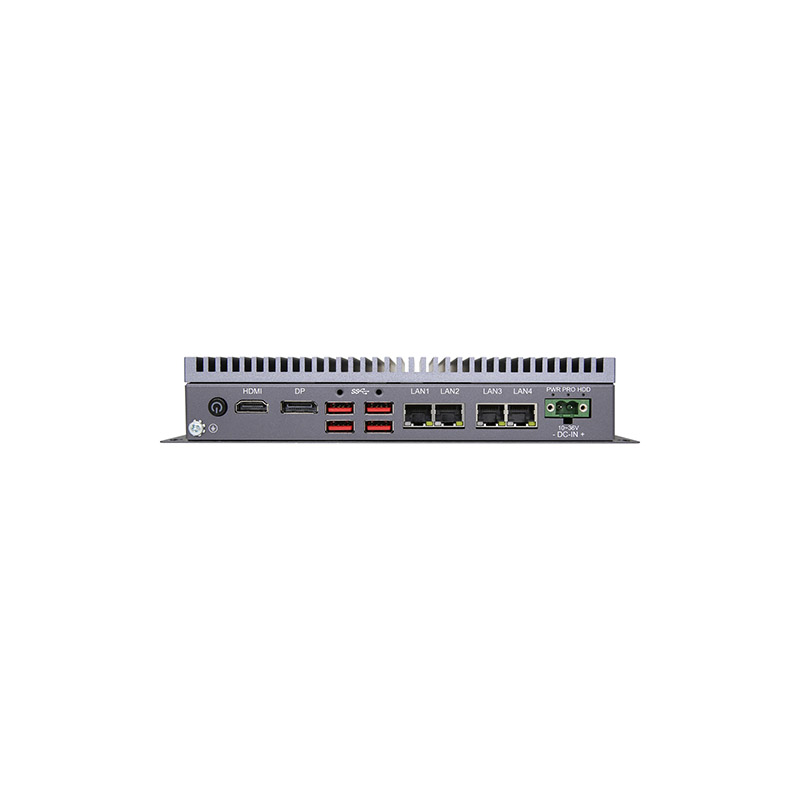

外部接口 External I/O

网口 Ethernet	4 x RJ45, Intel^®2 x i211 and 2 x i210 GbE (10/100/1000 Mbps)
显示 Video	1 x HDMI: max resolution up to 4096x2304@24Hz 1 x DP: max resolution up to 4096x2304@60Hz
音频 Audio	1 x Audio (Line-out&Mic-in 2 in 1) Realtek^® ALC888S HD Audio codec 1 x Bu ilt-in Speaker (optional)

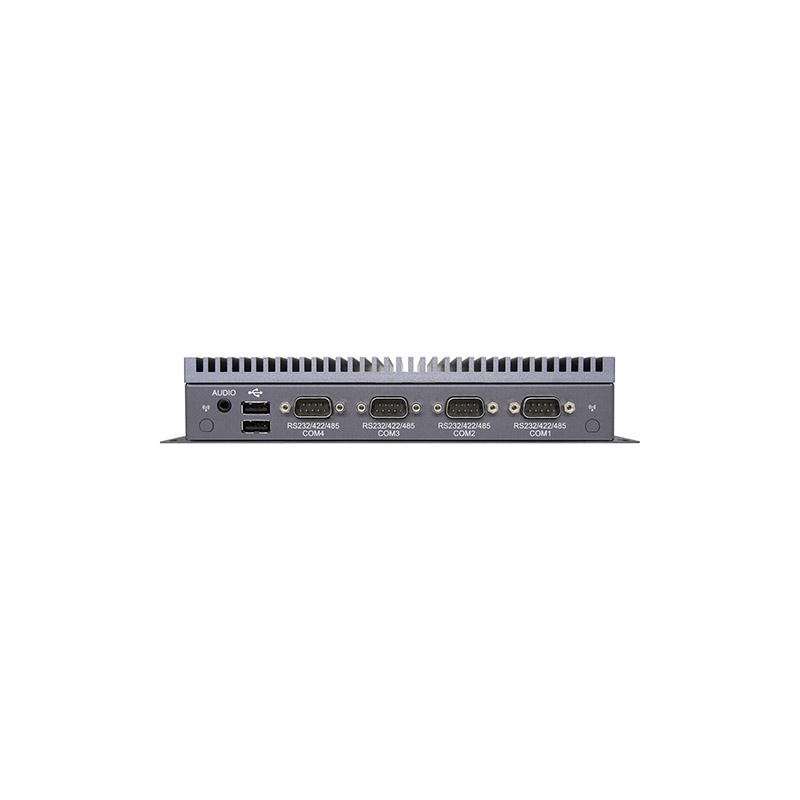

串口 COM	4 x RS232/422/485 auto-flow 2 x RS232 (optional by 3*3 pin -head)
USB	4 x USB 3.1 Gen2 2 x USB 2.0
GPIO	1 x 8bit programmable GPIO (optional)
按钮 Button	1 x Power button (White for Power-on, Blink for Sleep mode, Off for Power-off)
指示灯 LED	1 x Power LED (Green for DC-in) 1 x HDD LED (Green blink for Data read or write) 1 x programmable LED (Green Default monitoring CPU temperature)

内部接口 Internal I/O

扩展接口 Expansion	1 x Mini-PCIe slot (Support PCIE/SATA/USB2.0 Singal) 1 x M.2 2230 Key-E slot (only supported CNVI Wifi module) 1 x M.2 2242 slot (Support PCIe/SATA signal)
SIM 卡	1 x SIM Card socket for 3G/4G module

扩展模组 Extension module

Extension Module A (optional)	1 x Mini-PCIe slot (Support PCIE/USB2.0 Singal) 1 x M.2 3042/3052 Key-B slot (5G communication m odule supported) 1 x EDP:max resolution up to 4096x2304@60Hz 1 x SIM socket for 5G module
Extension Module B (optional)	1 x Mini-PCIe slot (Support PCIE/USB2.0 Singal) 1 x USB3.0 1 x EDP:ma x resolution up to 4096x2304@60Hz
Extension Module C (optional)	1 x 16 bit DI/O with optocoupler isolation DI 2500vrms, DO 2500vrms, response time ≤2ms, Output Frequency≤500Hz, Maximum driving capacity 100mA , NPN or PNP by optional

环境 Environmental

操作温度 OperatingTemp.	-20℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD)
存储温度 Storage Temp.	-40℃ ~ 85℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
振动 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
机械冲击 Shock	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation

电源 Power

电源输入 Power Input

10~36V DC, 2-pin phoenix connector

机构Mechanical

外观 Housing	铝合金 Aluminum Alloy
安装方式 Mounting	Desk-Mount (桌面式) Wall-Mount (壁挂式) VESA-Mount (100 x 100mm)(optional)
尺寸 Dimension	224 x 140 x 40 mm (基础型) 224 x 140 x 65 mm (一层扩展) 224 x 140 x 85 mm (二层扩展)
重量 Weight	1.35kg

认证 Certification

安规认证 Safety Certification

CCC
