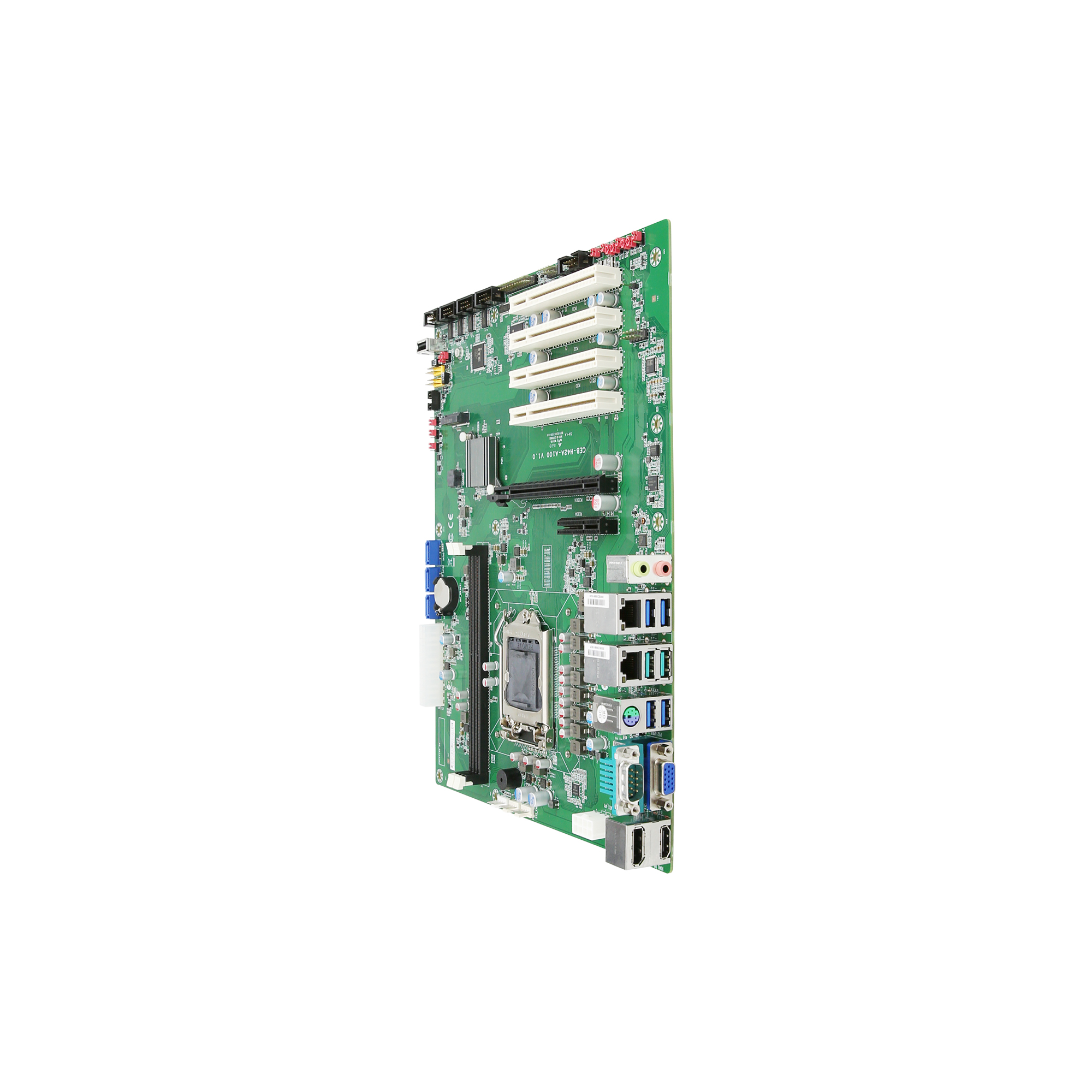

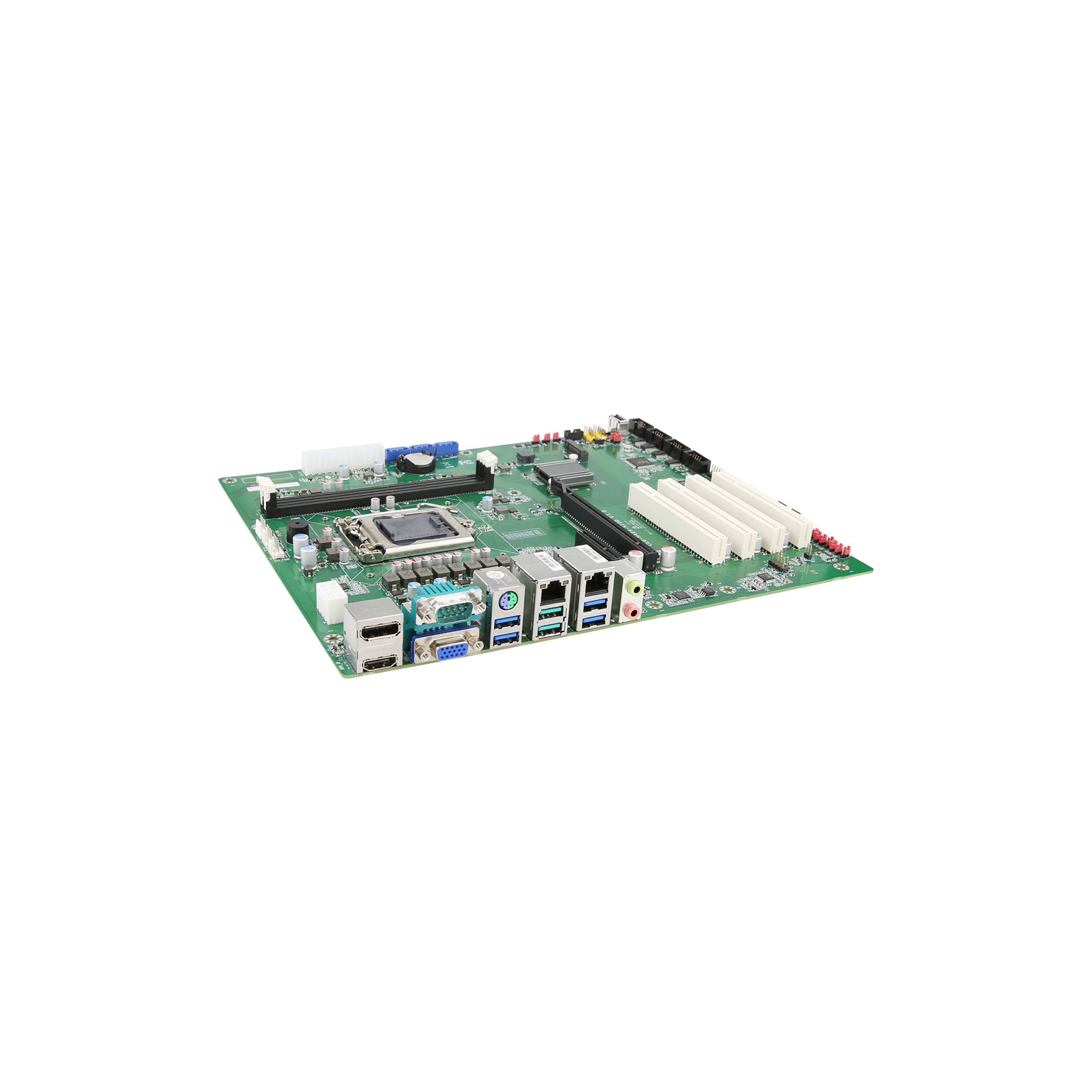

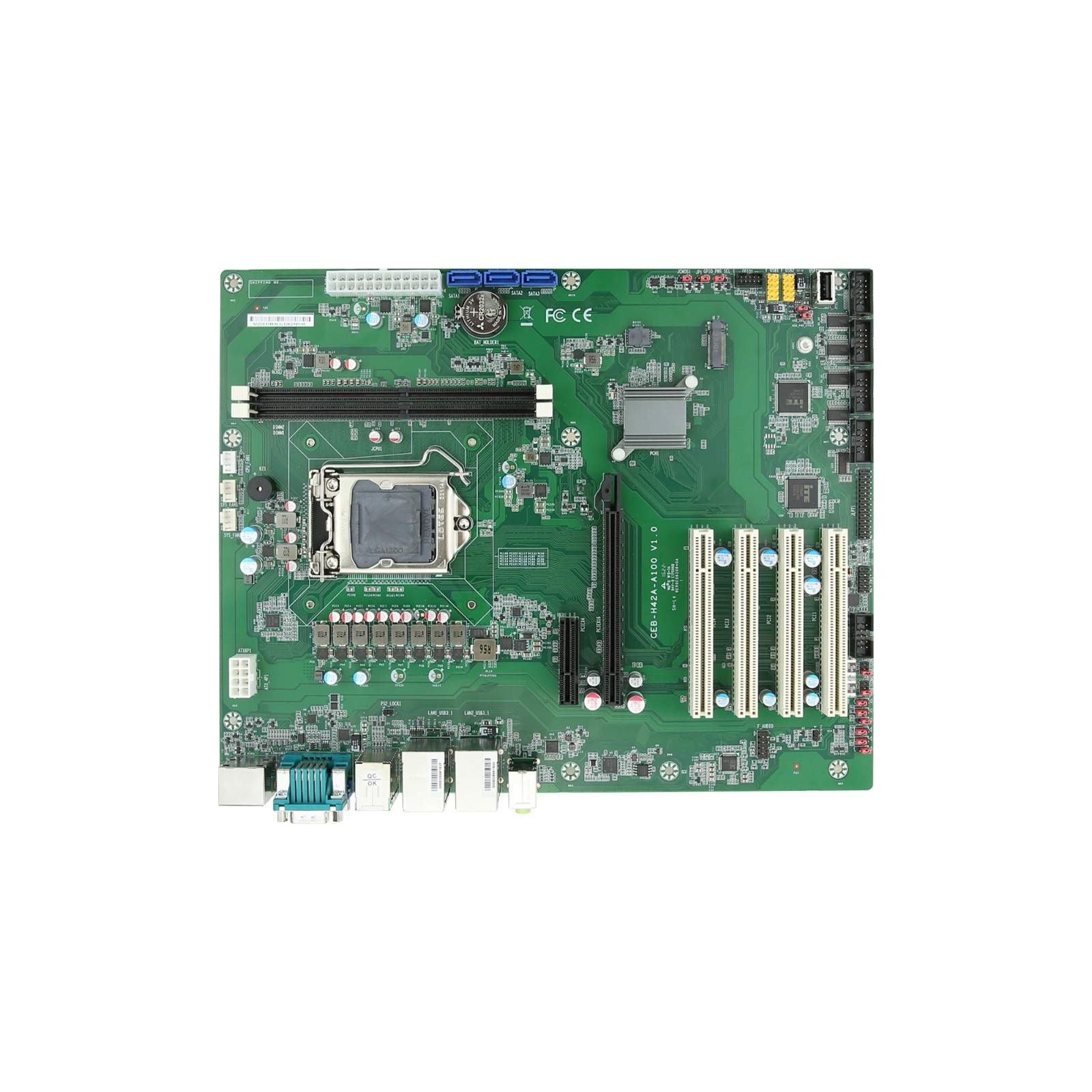

ATX工业主板 CEB-H42A-A100

Intel^®10/11代酷睿 i9/i7/i5/i3/奔腾^®/赛扬^®处理器, 功耗最高支援到125W
双通道2插槽 DDR4 2400/2666/2933MHz, 高达64GB
支持VGA, HDMI, DP双屏异显
支持两Intel GbEs, USB3.2 Gen1, 8位GPIO
支持3个SATA3.0
支持2个RS232/422/485(支持5V/12V电压输出)和4个RS232串联端口
1 x PCIe3.0 X16 ( X16link )和1个PCIe3.0 X4 (X4 link), 4个PCI, 1个M.2(SATA3.0 )

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel® 10th/11th Gen Core ™ i9/i7/i5/i3/Pentium®/Celeron® Processor, LGA1200, TDP up to 125W

处理器 Processor	Intel^® 10th/11th Gen Core ™ i9/i7/i5/i3/Pentium^®/Celeron^® Processor, LGA1200, TDP up to 125W
芯片组 Chipset	H420E
内存 Memory	2 x DDR4 2400/2666/2933 MHz U-DIMM Slot, up to 64GB
存储 Storage	3 x SATA 3.0, 1 x M.2 (SATA3.0)
显示 Display	Intel^® UHD Graphics 630
网口 Ethernet	1 x Intel^® i219-LM GbE, 1 x Intel^® i225-LM/i226-V (10/100/1000/2500 Mbps)
音频 Audio	Realtek^® ALC888S/ALC897 HD Audio codec, supports 5.1-channel
BIOS	AMI UEFI BIOS

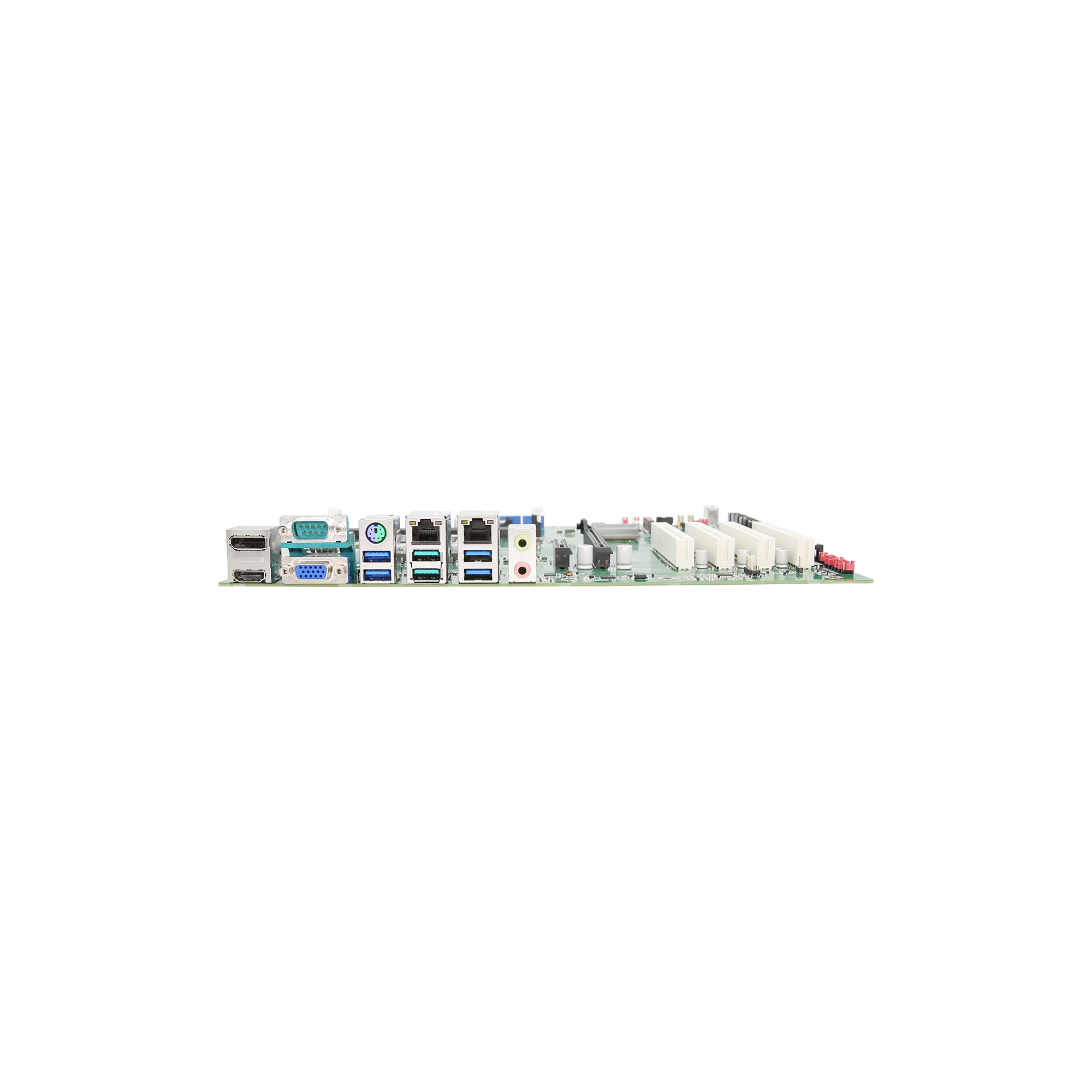

外部接口 Rear I/O	1 x HDMI: max resolution up to 3840*2160 @ 60Hz 1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x DP++: max resolution up to 4096 x 2304 @ 60Hz 1 x PS/2(Mini-DIN-6) 6 x USB3.2 Gen1 2 x RJ45 1 x RS232/422/485(with auto flow control) 1 x Line-out, Mic-in
内部接口 Internal I/O	1 x RS232/422/485(with auto flow control) 4 x RS232 4 x USB2.0 (Type-A sha re USB signal with one USB2.0) 1 x 8 bit GPIO 3 x SATA3.0 1 x CPU_FAN 2 x SYS_FAN 1 x LPT 1 x FP(power button, power led, reset, HDD led) 1 x Front Audio(Line-out, Mic-in)
扩展接口 Expansion	1 x PCIe3.0 X16 (X16link) 1 x PCIe3.0 X4 (X4 link) 4 x PCI 1 x M.2 (SATA3.0)
信赖平台模块 TPM	Nuvoton TPM2.0 (optional, need MOQ)
环境 Environment	操作温度Operation temp: 0℃ ~60℃ 存储温度Storage temp: -40℃ ~85℃ 操作湿度Operation hum: 5%~90%, 非凝结 non-coagulation 存储湿度Storage hum: 5%~95%, 非凝结 non-coagulation
电源输入 Power Input	ATX
尺寸 Dimensions	304.8 x 244 mm (12" x 9.6")
操作系统 OS	Windows 10 64Bit, Linux
看门狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds
