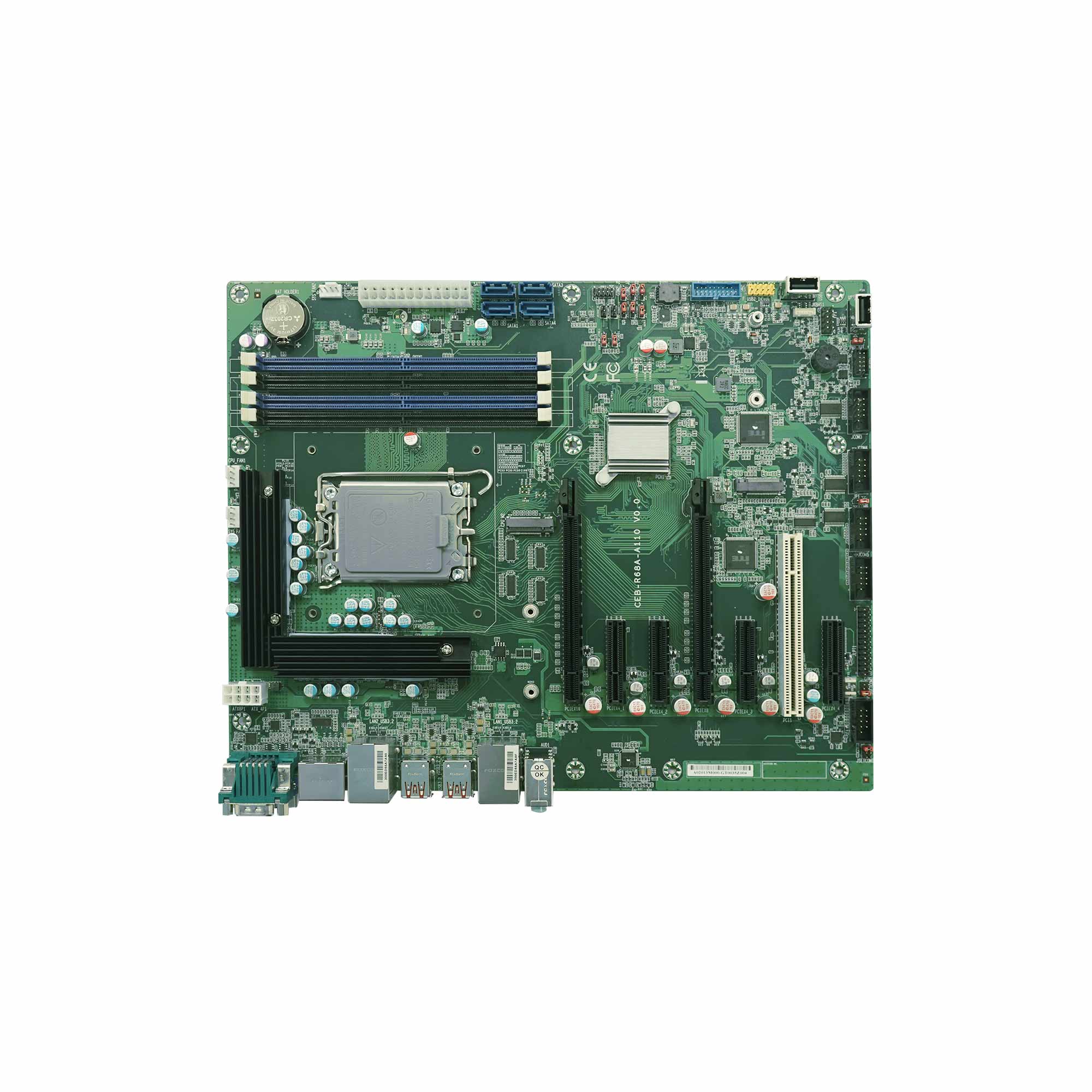

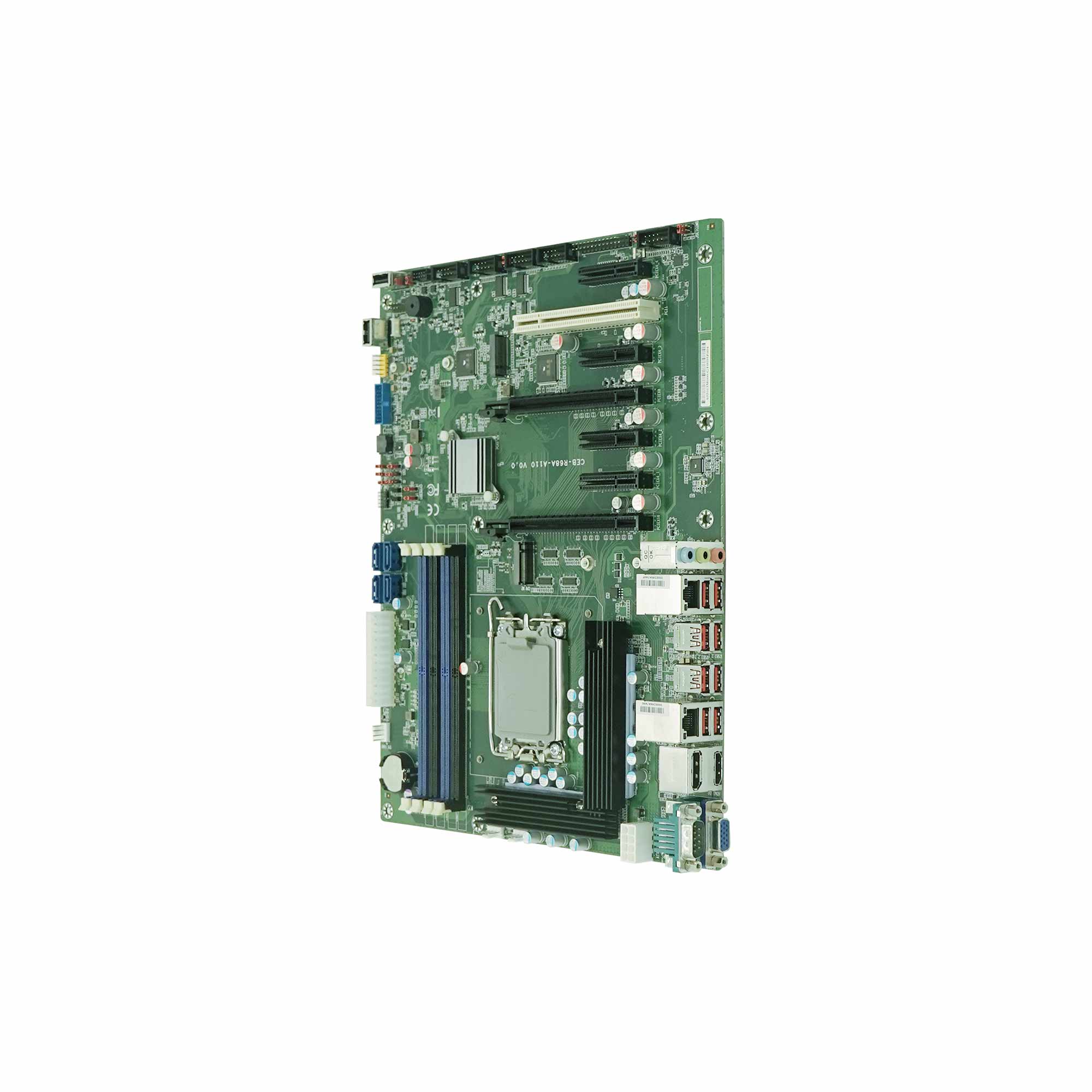

ATX工业主板 CEB-R68A-A110

Intel^®12/13代酷睿 i9/i7/i5/i3/奔腾^®/赛扬^®处理器, 功耗最高支援到125W, 支持intel vPro
双通道4插槽 DDR5 ECC/Non-ECC 3600/4000/4400MHz, 高达128GB
支持VGA, HDMI2.0, DP++三屏显示
支持双Intel GbEs, USB3.2 Gen1/2, 8位GPIO
支持4个SATA3.0, RAID0/1/5/10
支持2个RS232/422/485和4个RS232串联端口, 5V/12V电压输出
海岸线USB部分端口支援USB SR Pro技术
2 x PCIe4.0 X16 (1 x 16 or 2 x 8 link)和2 x PCIe4.0 X4 (X4 link), 2 x PCIe3.0 X4 (X4 link), 1个PCI, 1个M.2(PCIe3.0 X4 NVMe/SATA3.0) 2242/2280, 1个M.2(PCIe4.0 X4 NVMe )2242/2280

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel® 12th/13th Gen Core ™ i9/i7/i5/i3/Pentium®/Celeron® Processor, LGA1700, TDP up to 125W

处理器 Processor	Intel^® 12th/13th Gen Core ™ i9/i7/i5/i3/Pentium^®/Celeron^® Processor, LGA1700, TDP up to 125W
芯片组 Chipset	R680E
内存 Memory	4 x DDR5 ECC/Non-ECC 3600/4000/4400 MHz U-DIMM Slot, up to 128GB
存储 Storage	4 x SATA 3.0, 1 x M.2 (PCIe3.0x4 NVMe/SATA3.0) 2242/2280, 1 x M.2( PCIe4.0 X4 NVMe ) 2242/2280
显示 Display	Intel^® UHD Graphics 770
网口 Ethernet	1 x Intel^® i219-LM GbE, 1 x Intel^®I226-V co-lay I225-LM (10/100/1000/2500 Mbps)
音频 Audio	Realtek^® ALC888S/ALC897 HD Audio codec, supports 5.1-channel
BIOS	AMI UEFI BIOS

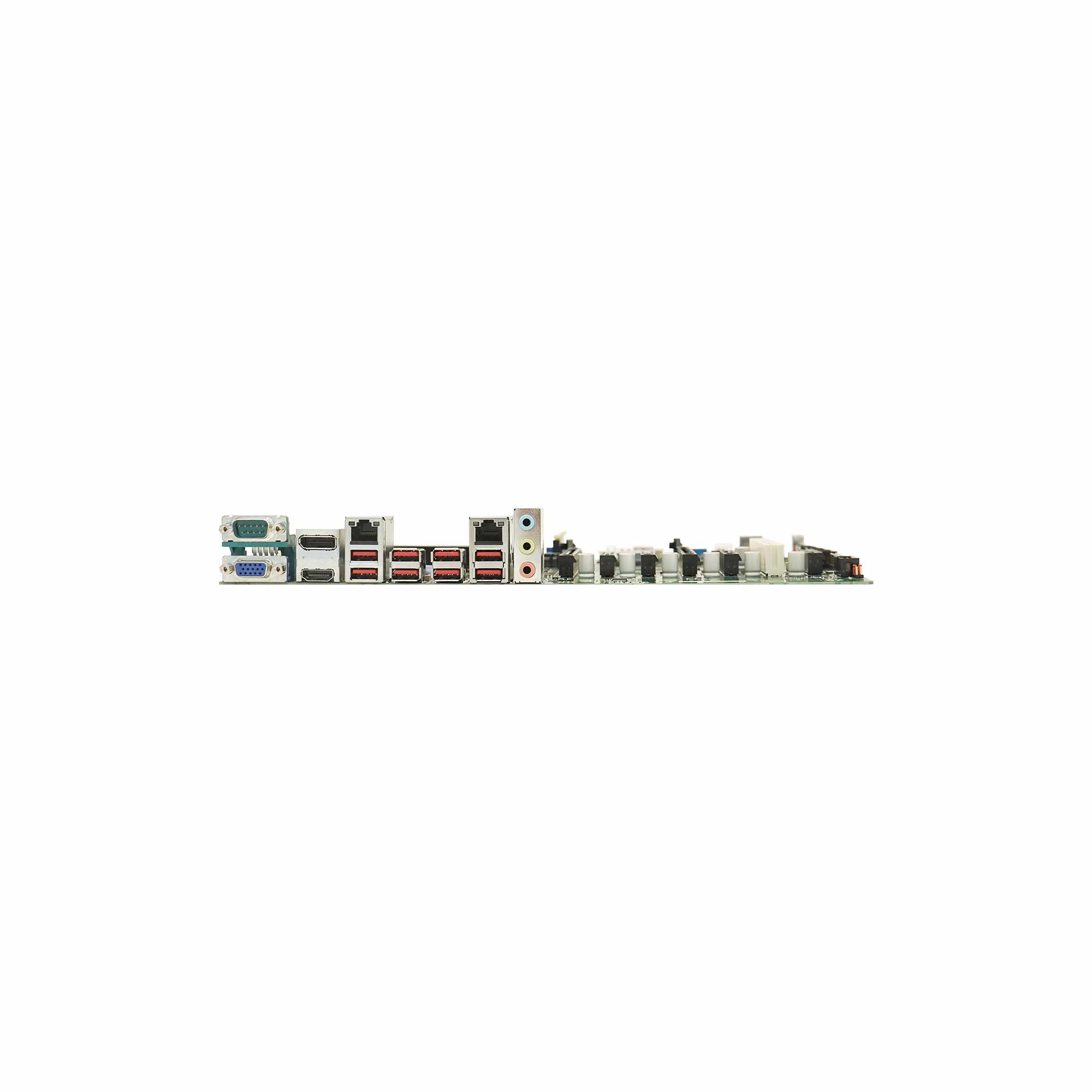

外部接口 Rear I/O	1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x HDMI2.0: max resolution up to 4096 x 2160 @ 60Hz 1 x DP++: max resolution up to 4096x2304 @ 60Hz 8 x USB3.2 Gen2 2 x RJ45 1 x RS232/422/485 with auto flow control 1 x Line-out, Line-in, Mic-in
内部接口 Internal I/O	1 x RS232/422/485 with auto flow control 4 x RS232 2 x USB3.2 Gen1 4 x USB2.0 (2 x Type-A) 1 x 8 bit GPIO 4 x SATA3.0 1 x PS/2 (for Keyboard and Mouse) 1 x CPU_FAN 2 x SYS_FAN 1 x LPT 1 x FP(power button,power led,reset,HDD led)
扩展接口 Expansion	2 x PCIe4.0 X16 ( 1 x 16 or 2 x 8 link) 2 X PCIe4.0 X4 (X4 link) 2 X PCIe3.0 X4 (X4 link) 1 x PCI 1 x M.2 (PCIe3.0 X4 NVMe/SATA3.0)2242/2280 1 x M.2(PCIe4.0 X4 NVMe) 2242/2280
信赖平台模块 TPM	Nuvoton TPM2.0
环境 Environment	操作温度Operation temp: 0℃ ~60℃ 存储温度Storage temp: -40℃ ~85℃ 操作湿度Operation hum: 5%~90%, 非凝结 non-coagulation 存储湿度Storage hum: 5%~95%, 非凝结 non-coagulation
电源输入 Power Input	ATX
尺寸 Dimensions	304.8 x 244 mm (12" x 9.6")
操作系统 OS	Windows 10 64bit, Linux
看门狗 Watchdog Timer	System Reset, Programmable via software from 1 to 255 seconds

The PCIe x16 slot, from CPU, can only support graphic cards and storage cards according to the specification recommended by Intel. Other types of add-on cards might not work properly.
