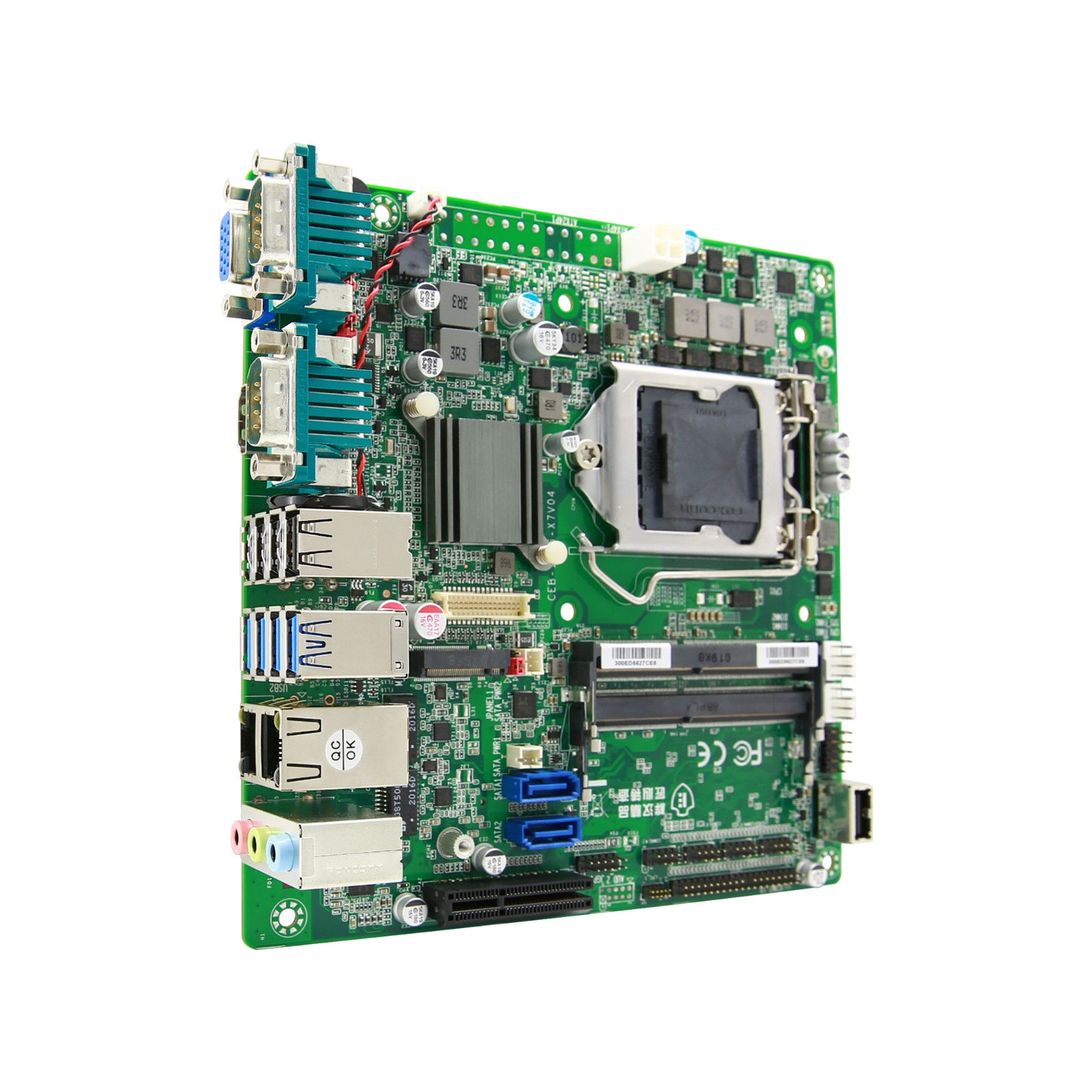

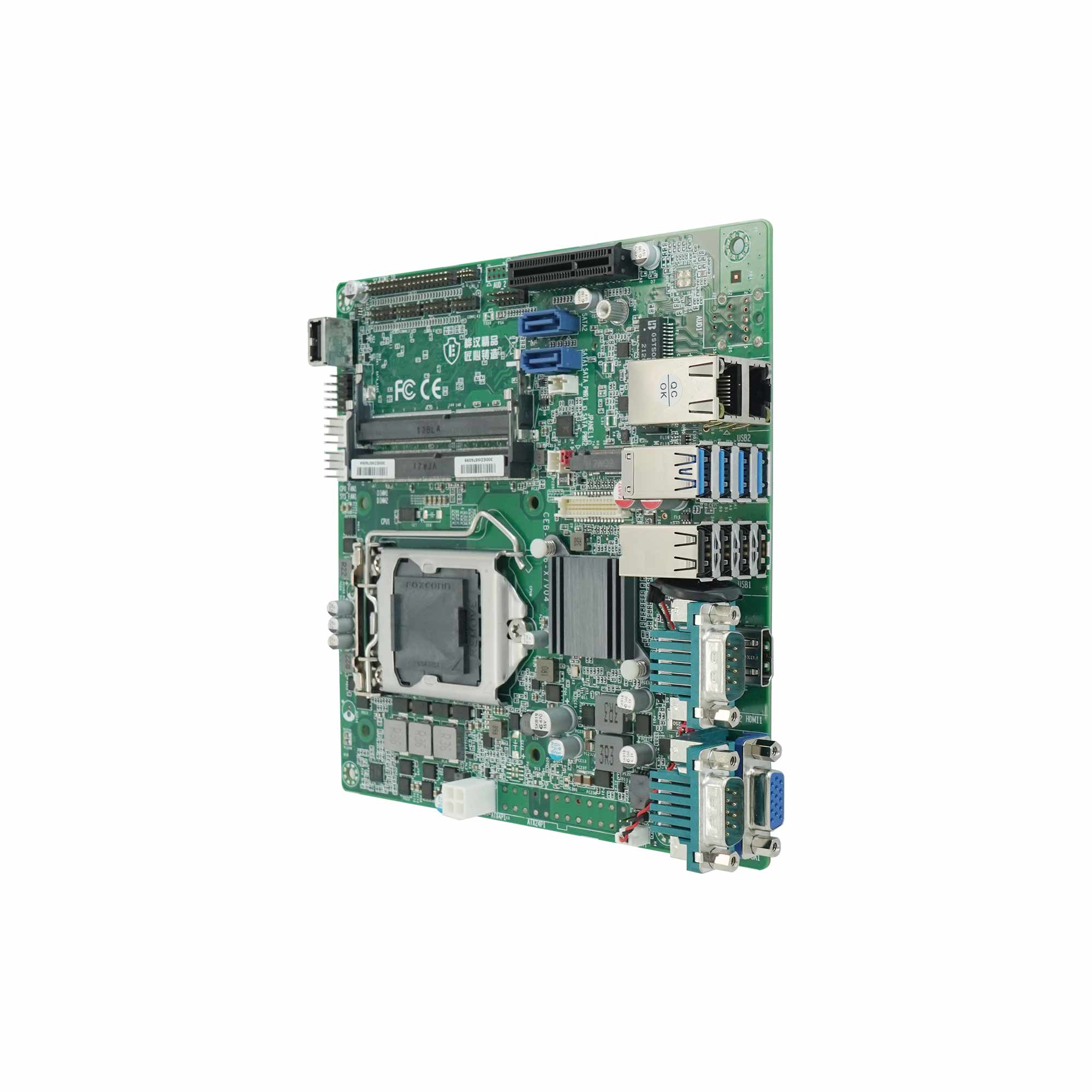

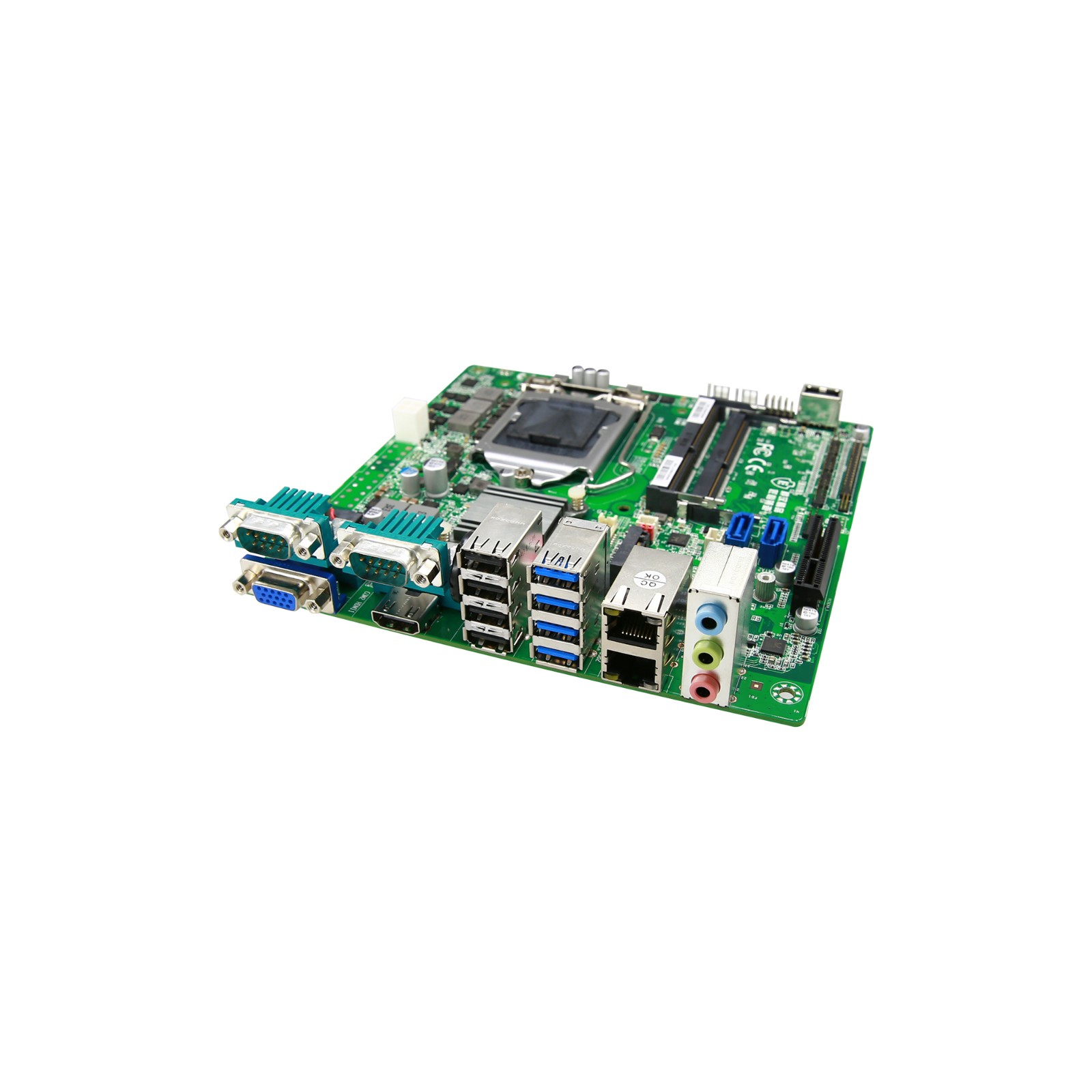

Mini-ITX工业主板 CEB-H11I-D100

采用H110芯片组
支持Intel^{^®} 6th/7th Gen. CoreTM i3/i5/i7、Pentium^{^®}、Celeron^{^®} Processor, LGA1151
支持2个DDR4 SO-DIMM内存, 最大可支持32GB
支持HDMI/VGA双显
支持千兆网口、10 x COM、9 x USB
支持Mini-PCIe、M.2、PCIe X 4
支持SIM卡安装
12V DC-IN输入
内置一颗直立USB2.0接口

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel® 6th/7th Gen. Core ™ i3/i5/i7, Pentium®, Celeron® Processor, LGA1151 Socket, TDP up to 65W

处理器 Processor	Intel^® 6th/7th Gen. Core ™ i3/i5/i7, Pentium^®, Celeron^® Processor, LGA1151 Socket, TDP up to 65W
芯片组 Chipset	Intel^® H110
内存 Memory	Dual Channel, 2 x SO-DIMM Slot, DDR4 1866/2133/2400MHz, up to 32GB
存储 Storage	2 x SATA3.0, 1 x M.2 2242 (SATA)
显示 Display	Intel^® HD Graphics
网口 Ethernet	2 x RJ45 Realtek 8111H GbE (10/100/1000 Mbps)
音频 Audio	Realtek^® ALC269Q HD Audio Codec
BIOS	AMI UEFI BIOS

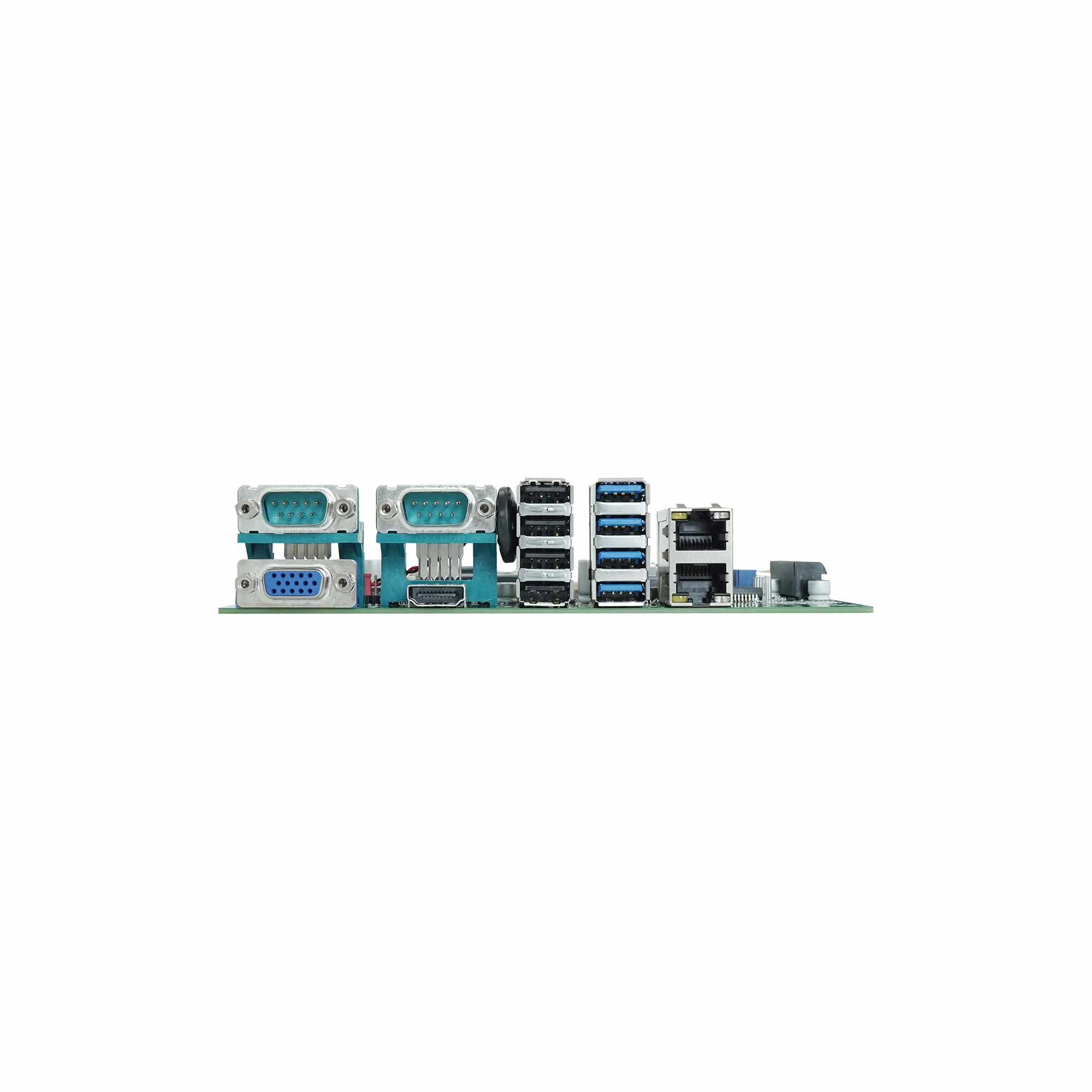

外部接口 Rear I/O	1 x HDMI: max resolution up to 4096 x 2304@24Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz 4 x USB2.0, 4 x USB3.0 2 x RJ45 2 x RS232 1 x Line-in, 1 x Line-out, 1 x Mic-in
内部接口 Internal I/O	1 x LVDS: max resolution up to 1920 x 1200@60Hz 1 x USB2.0 (Type-A) 1 x 8 bit GPIO 7 x RS232, 1 x RS232/422/485 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x CPU_Fan, 1 x SYS_Fan
扩展接口 Expansion	1 x Mini-PCIe 1 x PCIe X4 1 x M.2 2242 (SATA)
信赖平台模块 TPM	fTPM2.0
环境 Environment	操作温度 Operation Temp.: 0℃ ~ 60℃ 存储温度 Storage Temp.: -40℃ ~ 85℃ 操作湿度 Operation Humidity: 5% ~ 95%, 非凝结状态 Non-condensing 存储湿度 Storage Humidity: 5% ~ 95%, 非凝结状态 Non-condensing
电源输入 Power Input	12V DC-IN
尺寸 Dimensions	Mini-ITX (170 x 170mm)
操作系统 OS	6th Gen CPU : Windows7/8/10, Linux 7th Gen CPU : Windows10, Linux
