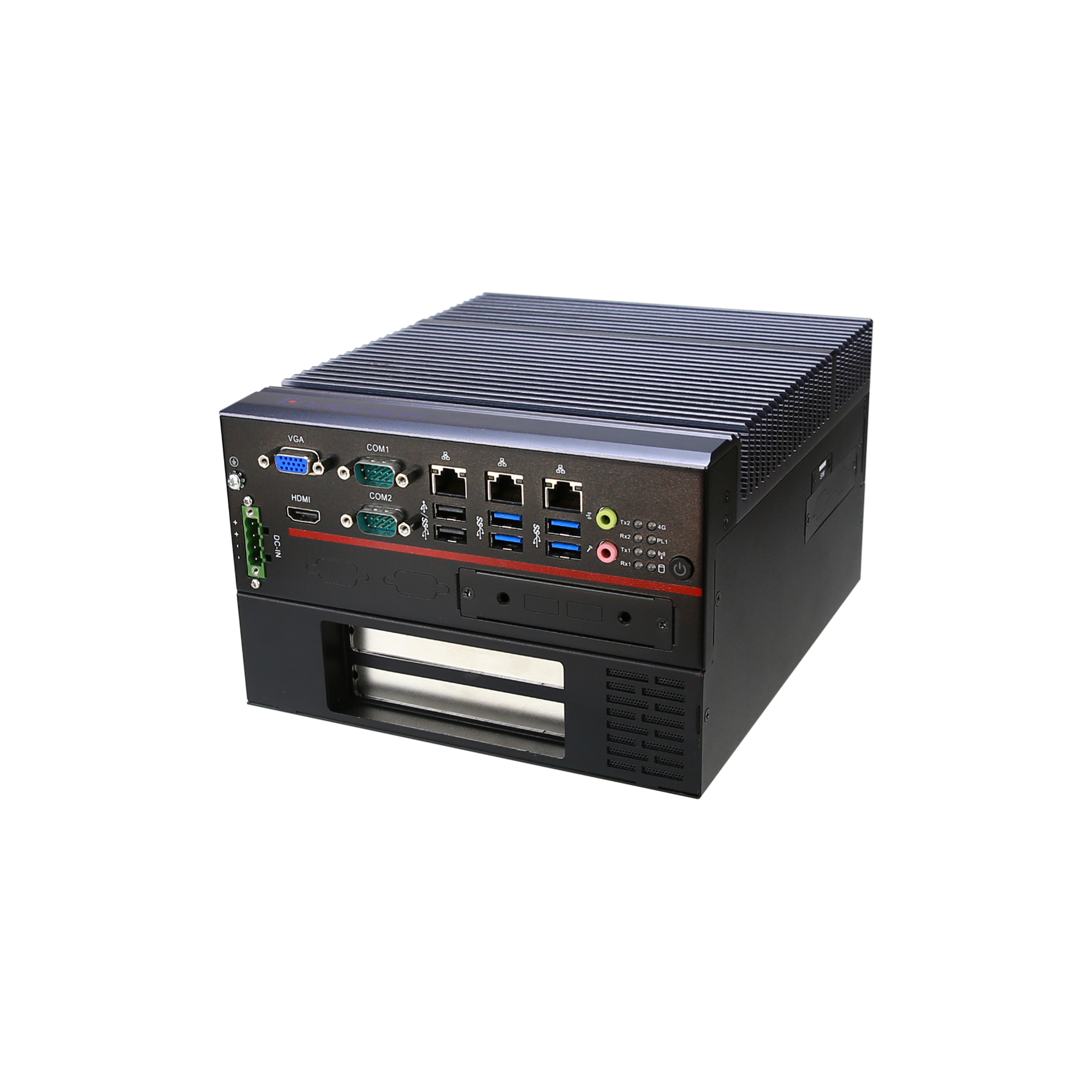

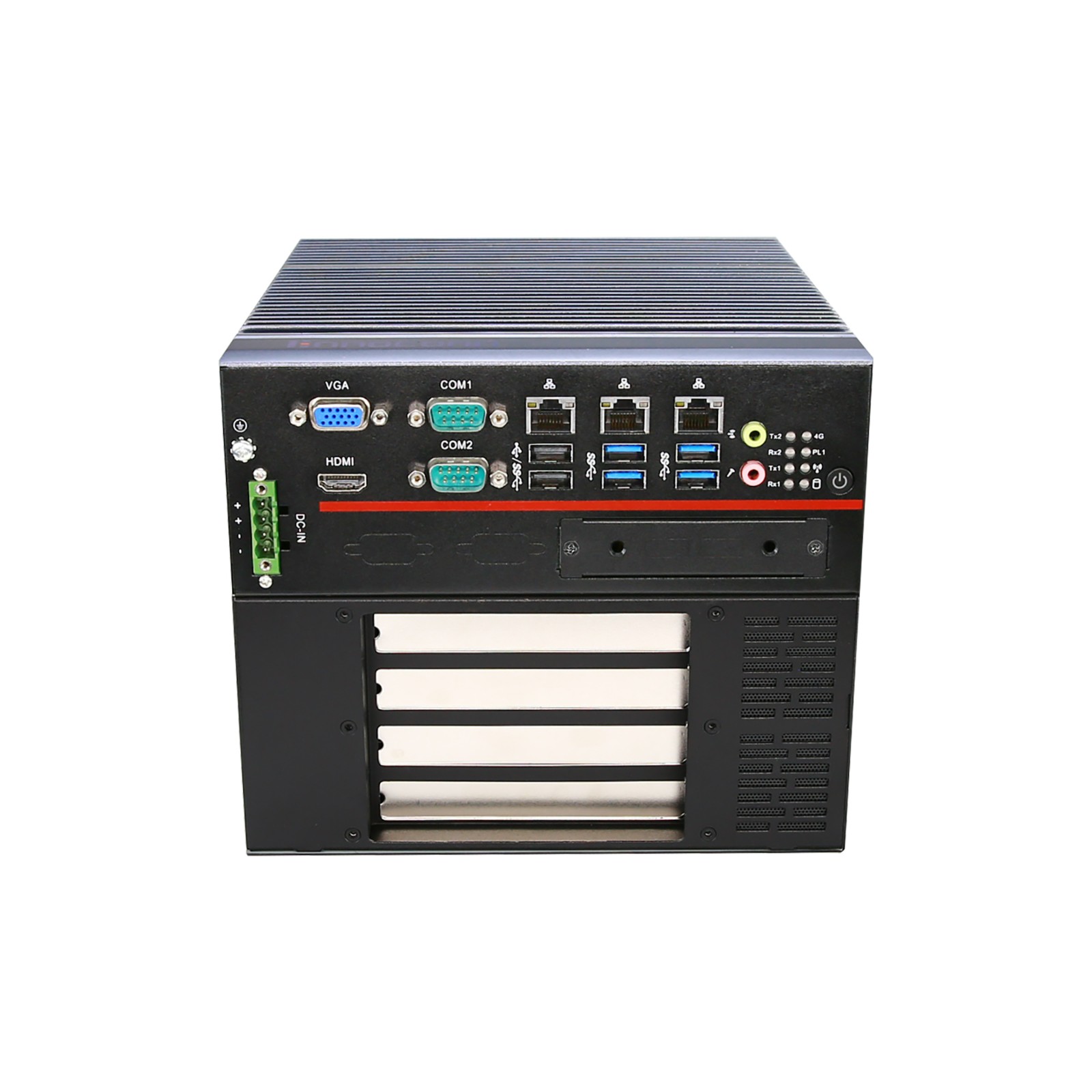

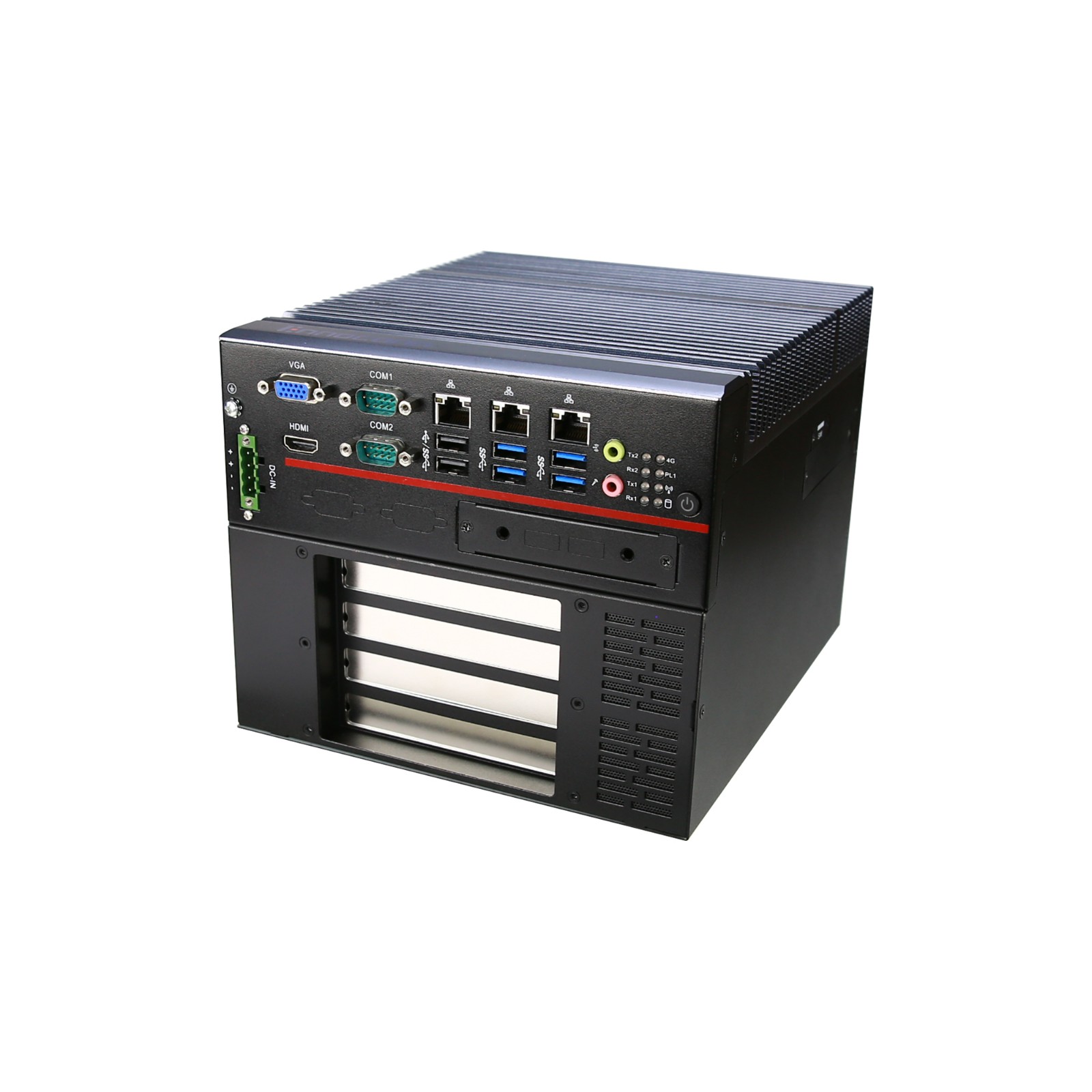

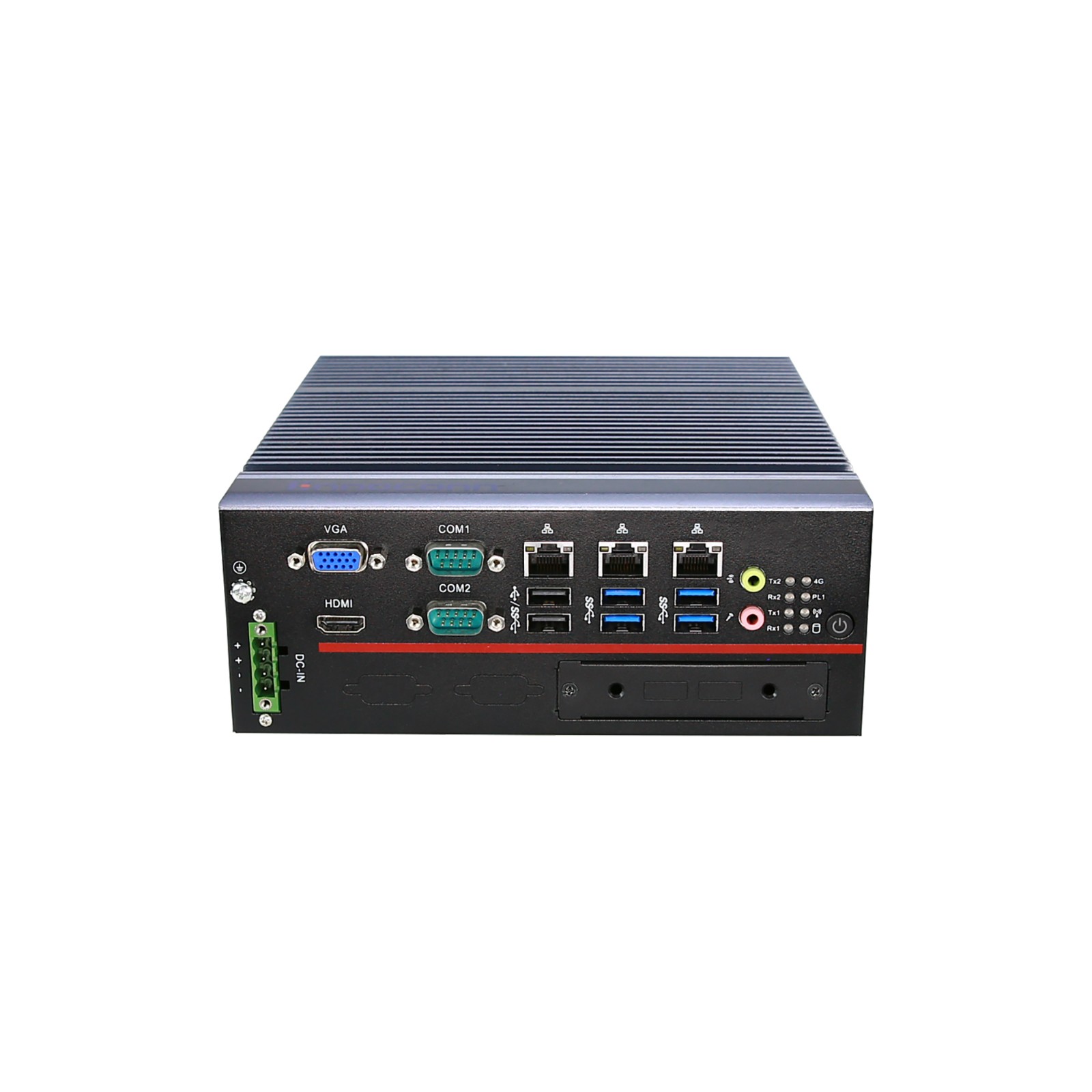

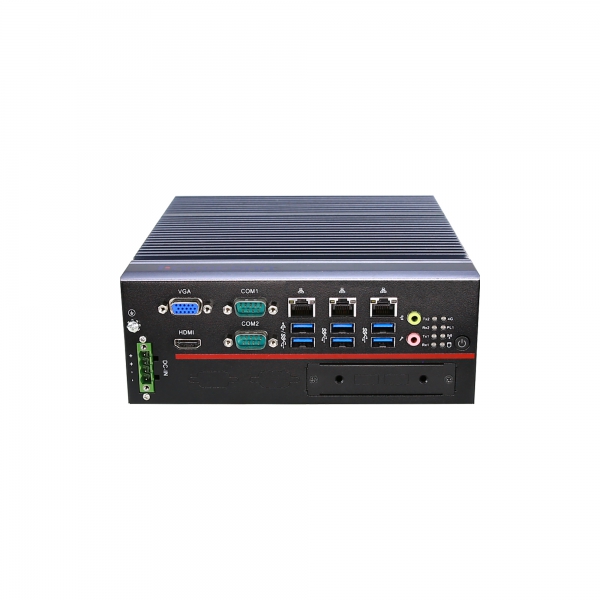

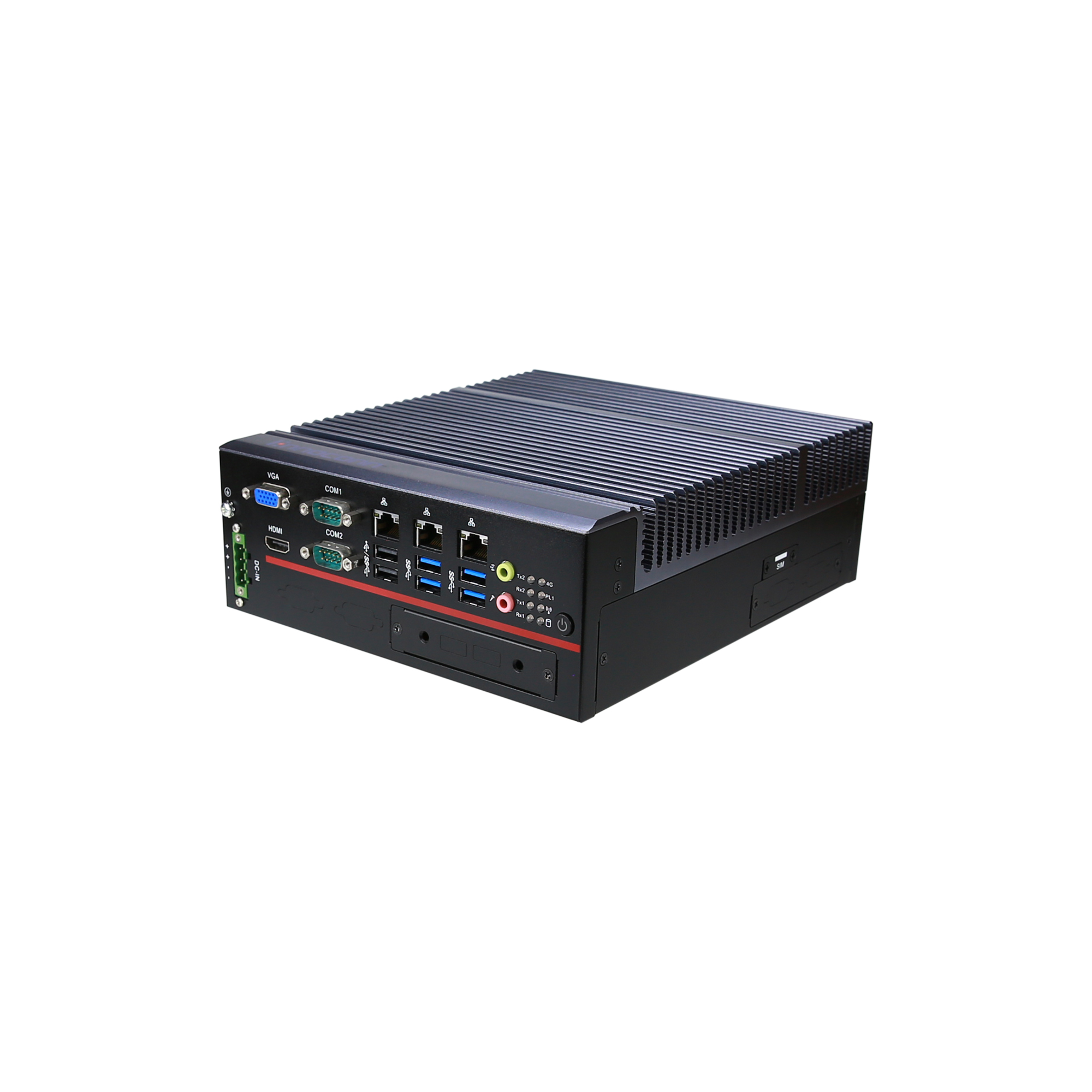

嵌入式工业电脑 CES-EH11-D32A

采用Skylake-S/Kabylake-S系列LGA1151奔腾/赛扬/酷睿处理器，搭载H110芯片组
支持双通道DDR4 2133MHz SO-DIMM内存插槽，内存容量最大可达32GB
支持三个千兆网口
支持VGA，HDMI双显
内置2 x 2.5寸HDD/SSD支架
内置1 x Mini-PCIe槽，1 x M.2 2230 wifi卡槽及1 x M.2 2242扩展槽
可支持PCIe X16，PCIe X4，PCIe X1及PCI扩展插槽
标准19~24V DC电源输入，可选宽压9-36V DC-IN
支持桦汉oDoor模组技术，可灵活选配LAN/COM/CAN等

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel® 6th/7th Gen. Pentium®, Celeron®, Core™ i3/i5/i7 Processor, LGA1151 Socket, up to 65W

系统 System

处理器 Processor	Intel^® 6th/7th Gen. Pentium^®, Celeron^®, Core™ i3/i5/i7 Processor, LGA1151 Socket, up to 65W
芯片组 Chipset	Intel^® H110 Chipset
内存 Memory	2 x DDR4 2133MHz SO-DIMM, up to 32GB
图形 Graphics	Intel^® HD Graphics 530/510 (Intel 6th Gen. CPU) Intel^® HD Graphics 630 (Intel 7th Gen. CPU)
存储 Storage	2 x 2.5" SATA 3.0 HDD/SSD Bay 1 x M.2 2242 SSD slot
操作系统 OS	Windows7/8/10,Linux(Intel^® 6th/ CPU) Windows10,Linux(Intel^® 7th/ CPU)
看门狗定时器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

网口 Ethernet	2 x RJ45, Intel^® i211AT GbE (10/100/1000 Mbps) 1 x RJ45, Intel^® I219LM GbE (10/100/1000 Mbps)
显示 Video	1 x VGA: max resolution up to 1920 x 1200 1 x HDMI: max resolution up to 4096 x 2160
音频 Audio	1 x Line-out, 1 x Mic-in, Realtek^® ALC888S HD Audio codec
串口 COM	2 x RS232/422/485 auto-flow 2 x RS232/422/485 auto-flow (optional by internal pin head) 2 x RS232 (optional by internal pin head)
USB	4 x USB3.0, 2 x USB2.0,2 x USB2.0（optional by internal pin head）
按钮 Button	1 x Power button
指示灯 LED	1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write) 2 x COM1 LED for Rx1 and Tx1 2 x COM2 LED for Rx2 and Tx2 1 x Wifi communication LED (yellow blink for communication) 1 x 4G communication LED (yellow blink for communication) 1 x PL1 for user defination (can indicate CPU temperature, voltage dectact, CPU/SYS Fan speed, etc）
远程开关 Remote ON-OFF	1 x Remote ON-OFF

内部接口 Internal I/O

扩展接口 Expansion	1 x Mini-PCIe slot (PCIe signal supported) 1 x M.2 2230 slot (Wifi module supported)
SIM 卡	1 x 3G/4G SIM socket

环境 Environmental

操作温度 OperatingTemp.	-10℃ ~ 40℃ with 0.7m/s air flow (with 65W CPU and industrial SSD) -10℃ ~ 50℃ with 0.7m/s air flow (with 35W CPU and industrial SSD) 0℃ ~ 30℃ with 0.7 m/s air flow (HDD)
存储温度 Storage Temp.	-40℃ ~ 85℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
振动 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
机械冲击 Shock	Operation: 10G@11ms Non-operation: 30G@11ms

电源 Power

电源输入 Power Input

19~24V DC, 4-pin phoenix connector (9~36V DC optional with power board)

机构Mechanical

外观 Housing	铝合金 Aluminum Alloy
安装方式 Mounting	桌面式 (Desk-Mount), 壁挂式 (Wall-Mount)
尺寸 Dimension	200 x 230 x 78 mm( 基础型),200 x 230 x 129 mm(2 槽扩张型) 200 x 230 x 169 mm(4 槽扩展型)
重量 Weight	3.5kg( 基础型), 4.2kg(2 槽扩展型), 4.9kg(4 槽扩展型)
