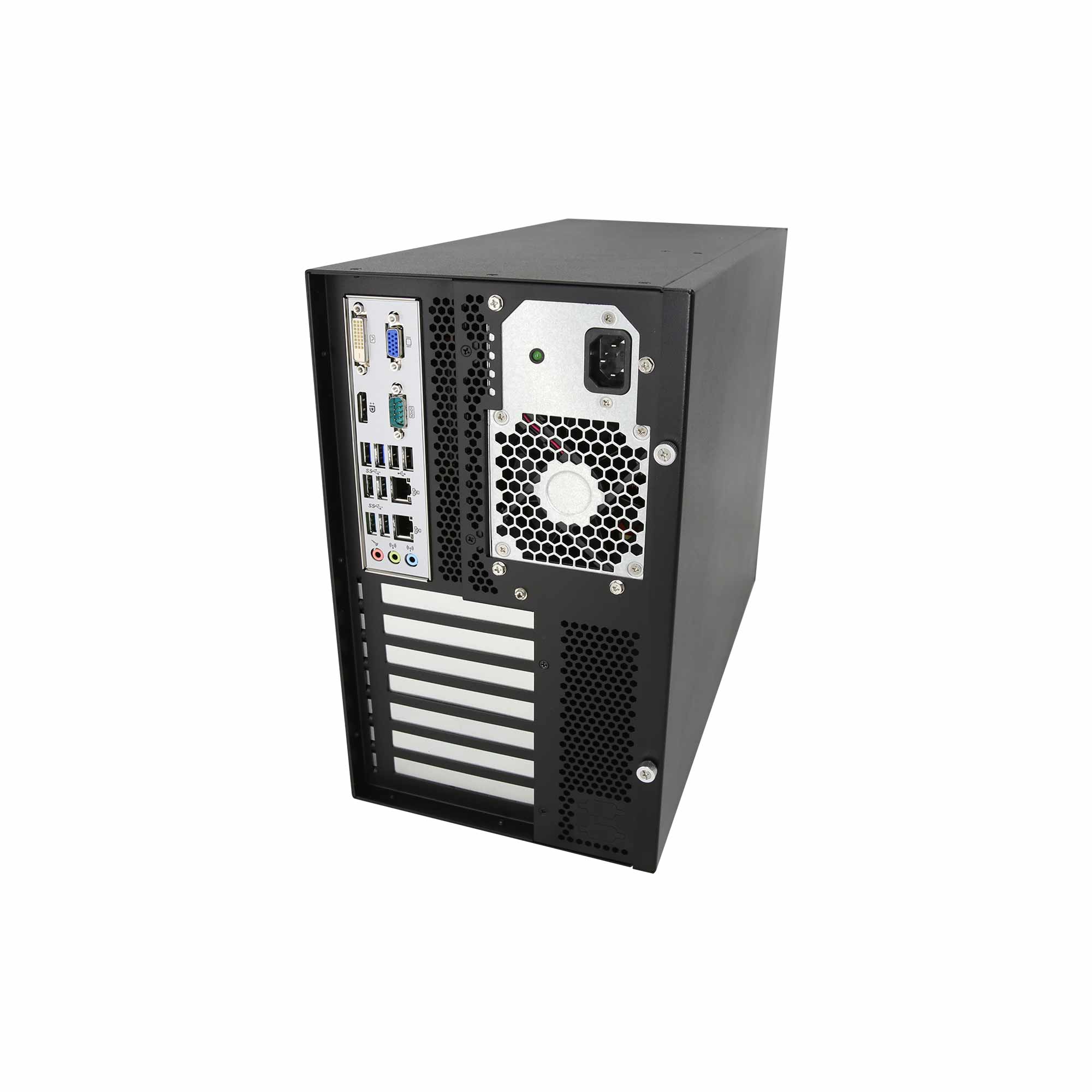

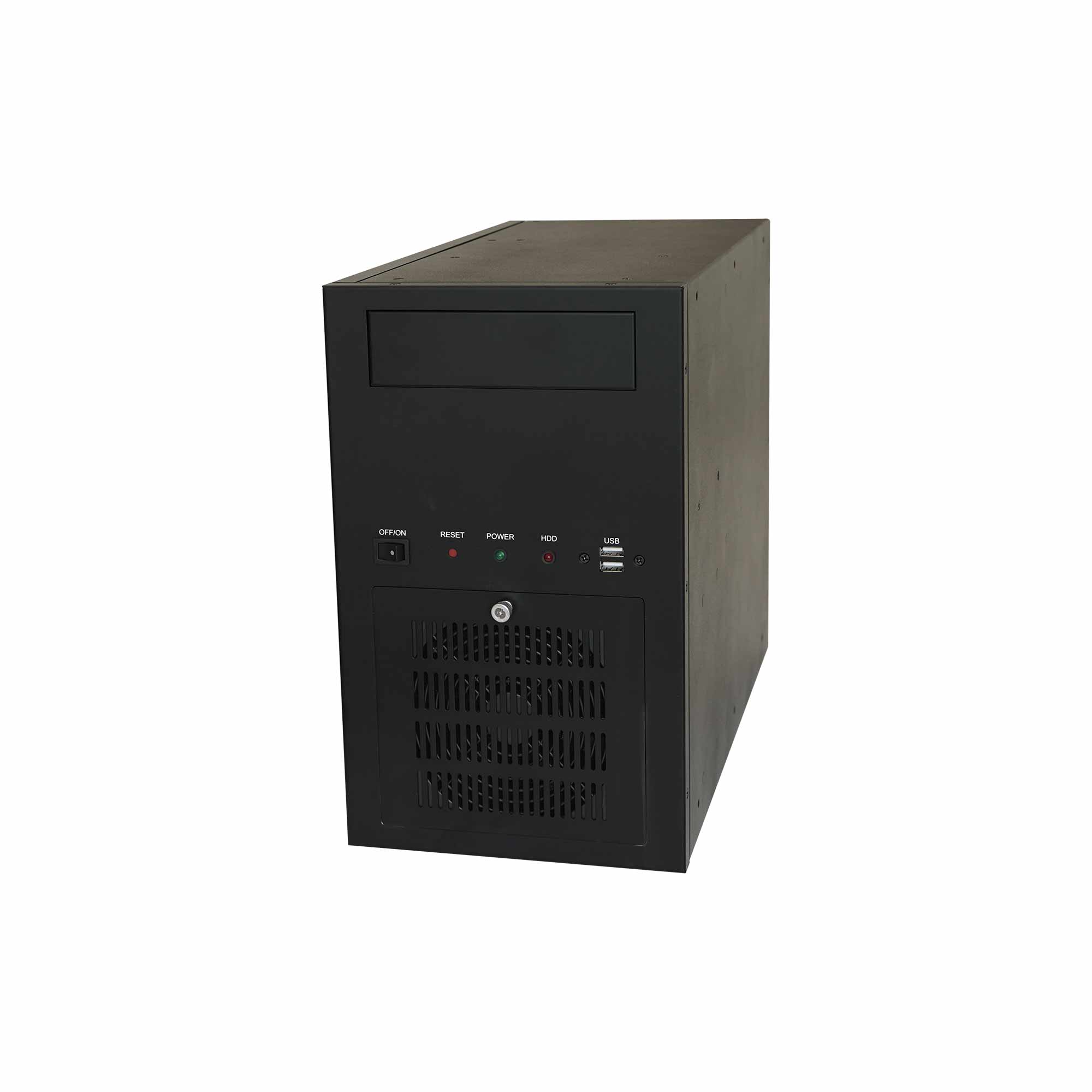

塔式工控机 CEFS-TA21-Q37A

Intel^® 8th/9th 酷睿 i9/i7/i5/i3/奔腾^®/赛扬^®处理器, 功耗最高支援到95W
采用Q370
支持双千兆网口
支持VGA、DVI-D、DP三屏异显
内置PCI,PCIe插槽，支持多种模块扩展
抗震动磁盘架设计，可支持1个5.25寸光驱、2个2.5"SSD、2个3.5"HDD硬盘
前部可访问 USB接口，更易于数据传输
海岸线上的USB端口支持Ennoconn USB SR Pro

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel® 8th/9th Gen Core ™ i9/i7/i5/i3/Pentium®/Celeron® Processor, TDP up to 95W

系统 System

处理器 Processor	Intel^® 8th/9th Gen Core ™ i9/i7/i5/i3/Pentium^®/Celeron^® Processor, TDP up to 95W
芯片组 Chipset	Intel^® Q370
内存 Memory	Dual Channel,4 x U-DIMM Slot,DDR4 2400/2666 MHz, up to 128GB
图形 Graphics	Intel^® HD Graphics, triple display
存储 Storage	4 x SATA3.0, 1 x M.2 (PCIe3.0 x 4 Support NVME)2242/2280
操作系统 OS	Windows 10, Linux
信赖平台模块 TPM	Nuvoton TPM1.2 (optional, need MOQ)

外部接口 External I/O

网口 Ethernet	1 x Intel^® i219-LM GbE, 1 x Intel^® i211-AT (10/100/1000 Mbps)
显示 Video	1 x DVI-D: max resolution up to 1920 x 1200 @ 60Hz 1 x VGA: max resolution up to 1920 x 1200 @ 60Hz 1 x DP: max resolution up to 4096 x 2304 @ 60Hz
音频 Audio	1 x Line-in, 1 x Line-out, 1 x Mic-in
串口 COM	1 x RS232/422/485 (with auto flow control)
USB	4 x USB3.2 Gen2, 2 x USB3.2 Gen1, 4 x USB2.0
按钮 Button	1 x Power Button, 1 x Reset Button
指示灯 LED	1 x Power LED, 1 x HDD LED

内部接口 Internal I/O

扩展接口 Expansion	2 x PCIe X16 (Gen3, 1 x 16 or 2 x 8 link), 3 x PCIe X4 (X4 link), 2 x PCI
风扇 FAN	1 x CPU Fan, 2 x System Fan
USB	3 x USB2.0 (2 x Type-A)
GPIO	1 x 16-bit GPIO
串口 COM	1 x RS232/422/485(with auto flow control),2 x RS232/485, 2 x RS232
LPT	1 x LPT
PS/2	1 x PS/2 (keyboard and mouse)
SATA	4 x SATA3.0
Mini-PCIe Slot	1 x Mini-PCIe(PCIe3.0/SATA3.0、USB2.0)

环境 Environmental

操作温度 Operating Temp.	0℃ ~ 40℃
存储温度Storage Temp.	-20℃ ~ 60℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态 Non-condensing
随机振动 Random Vibration	5~500Hz, 1Grms (HDD) operation
正弦振动 Sine Vibration	5~500Hz, 2G Non-operation
机械冲击 Shock	10G @ 11ms operation
