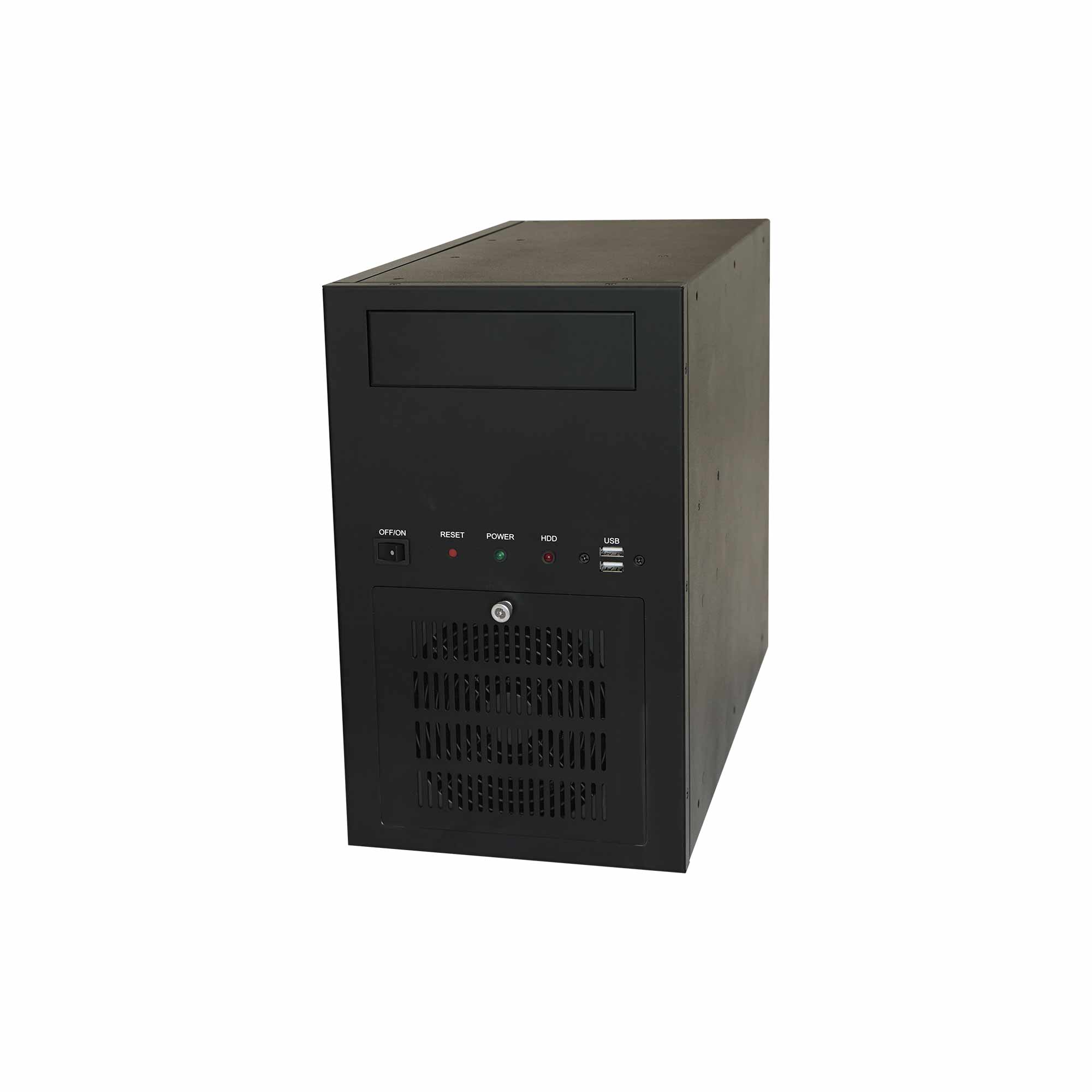

塔式工控机 CEFS-TA22-H11A

Intel^®6/7代酷睿 i7/i5/i3/奔腾^®/赛扬^®处理器, 功耗最高支援到95W
采用H110芯片组
支持双千兆网口
支持VGA, DVI-D双显功能
内置PCI、PCIe插槽，支持多种模块扩展
抗震动磁盘架设计，可支持1个5.25寸光驱、2个2.5"SSD、2个3.5"HDD硬盘
前部可访问 USB接口，更易于数据传输

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

Intel®6th/7th Core™ i7/i5/i3/Pentium®/Celeron® Processor, LGA1151 Socket, TDP up to 95W

系统 System

处理器 Processor	Intel^®6th/7th Core™ i7/i5/i3/Pentium^®/Celeron^® Processor, LGA1151 Socket, TDP up to 95W
芯片组 Chipset	Intel^® H110
内存 Memory	Dual Channel, 4 x U-DIMM Slot, DDR3 (1.5V) 1333/1600MHz, up to 32GB
图形 Graphics	Intel^® HD Graphics, dual display
存储 Storage	4 x SATA 3.0
操作系统 OS	6th Gen CPU : Windows7/8.1/10, Linux 7th Gen CPU : Windows10, Linux

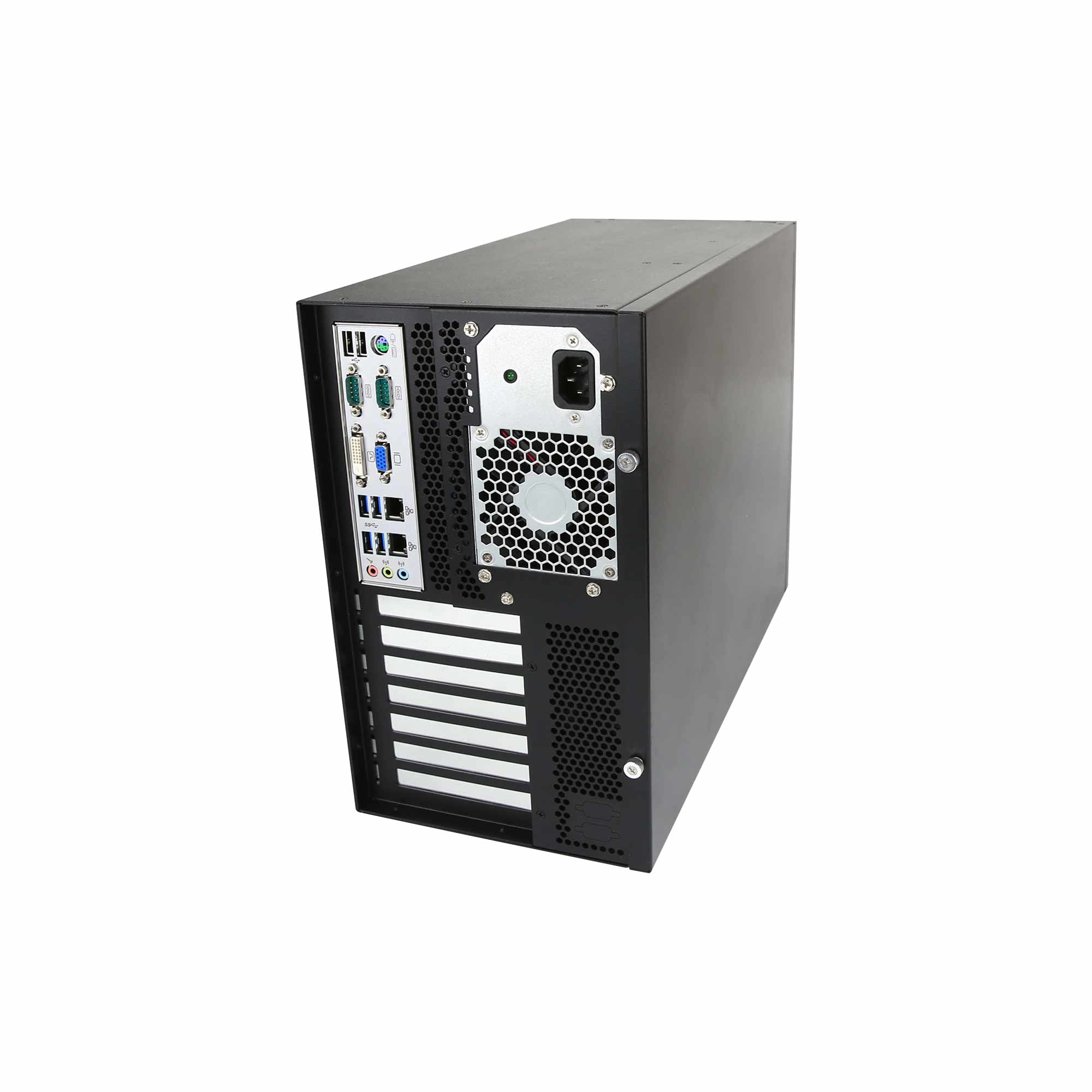

外部接口 External I/O

网口 Ethernet	1 x RJ45 Intel^® I211AT + 1 x RJ45 Intel^® I219-LM GbE（10/100/1000 Mbps）
显示 Video	1 x DVI-D: max resolution up to 1920 x 1200@60Hz 1 x VGA: max resolution up to 1920 x 1200@60Hz
音频 Audio	1 x Line-in, 1 x Line-out, 1 x Mic-in
串口 COM	2 x RS232/RS422/RS485(with auto flow control)
USB	4 x USB 2.0, 4 x USB 3.0(Support Ennoconn USB SR Pro Technology)
PS/2	1 x PS/2 (Mini-DIN-6)
按钮 Button	1 x Power Button, 1 x Reset Button
指示灯 LED	1 x Power LED, 1 x HDD LED

内部接口 Internal I/O

扩展接口 Expansion	1 x PCIe X 16 (Gen3) Slot, 1 x PCIe X 4 Slot, 4 x PCI Slot
风扇 FAN	1 x CPU Fan, 2 x System Fan
USB	2 x USB2.0 (Type-A share USB signal with one USB2.0)
GPIO	1 x 16 bit GPIO
串口 COM	2 x RS232, 2 x RS232/485

环境 Environmental

操作温度 Operating Temp.	0℃ ~ 40℃
存储温度Storage Temp.	-20℃ ~ 60℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
随机振动 Random Vibration	5~500Hz, 1Grms (HDD)operation
正弦振动 Sine Vibration	5~500Hz, 2G Non-operation
机械冲击 Shock	10G @ 11ms operation
