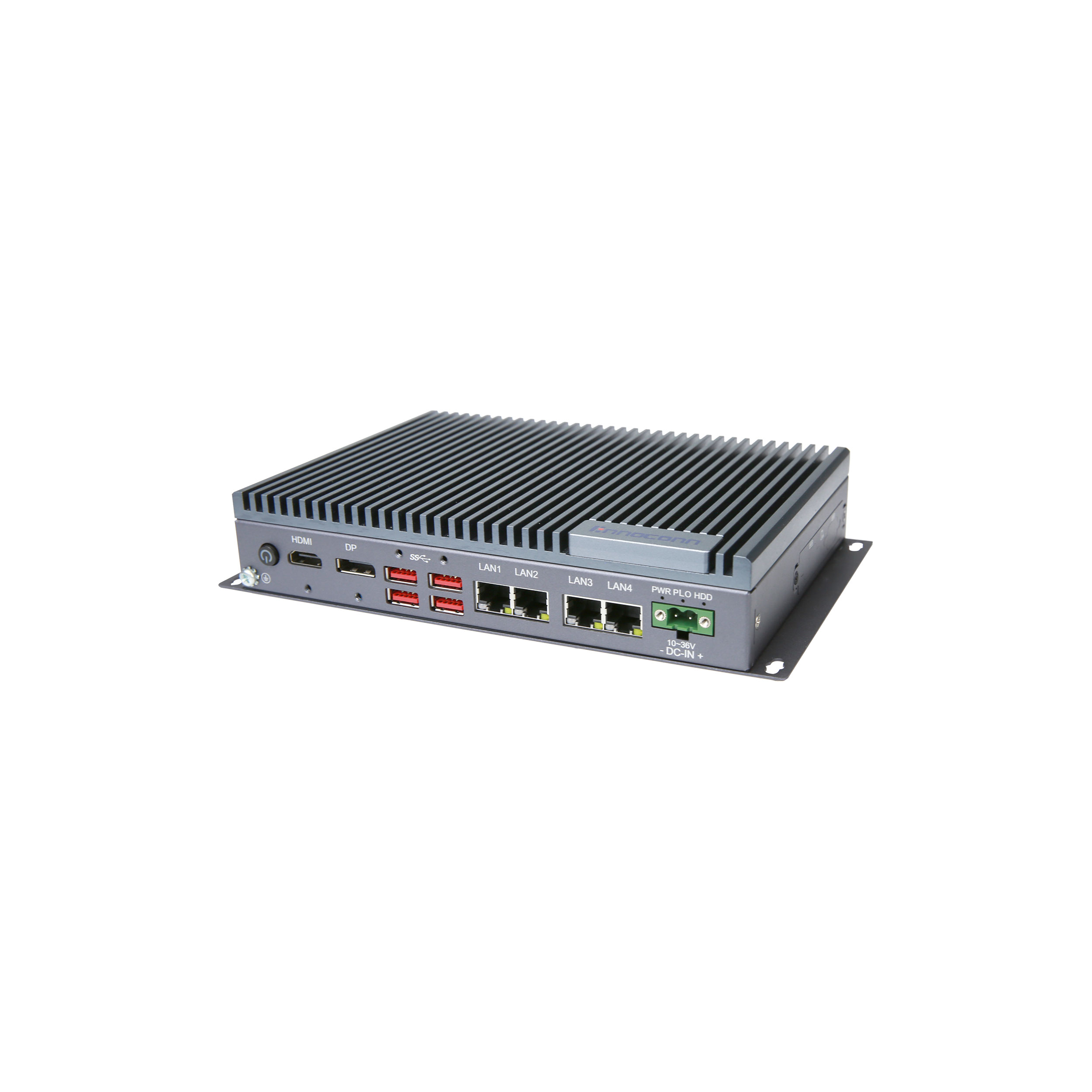

嵌入式工业电脑 CES-R814-W44B

板载Intel^® 8th Gen. U Processors i3-8145U/i5-8265U/i7-8565U CPU,主频最大可以达到2.1GHz
支持单通道DDR4 2133/2400 MHz SO-DIMM内存插槽，内存容量最大可达32GB
支持4个千兆网口
支持DP/HDMI/EDP 扩展同步于/异步显示
内置2 x Mini-PCIe,1 x M.2 2242,1 x M.2 2230(CNVI),1 x M.2 3042/3052 多种模块扩展
10~36V宽压设计，可锁附DC-IN接口

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

采用板载Intel® 8th Gen. U Processors i3-8145U/i5-8265U/i7-8565U CPU

系统 System

处理器 Processor	Intel^® 8th Gen. U Dual Core Processors i3-8145U (2.1GHz up to. 93GHz) Intel^® 8th Gen. U Quad Core Processors i5-8265U (1.6GHz up to. 93GHz) Intel^® 8th Gen. U Quad Core Processors i7-8565U (1.8 GHz up t4o.6GHz)
内存 Memory	1 x DDR4 2133/2400MHz SO-DIMM up to 32 GB
图形 Graphics	Intel@UHD Graphics620, dual display
存储 Storage	1 x mSATA Colay mini-PCIe Connect 1 x M.2 2242 SSD 1 x 2.5" SATA 3.0 HDD/SSD BAY ( 与M.2 2242 组Raid 0/1)
操作系统 OS	Windows 10, Linux
看门狗定时器 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

网口 Ethernet	4 x RJ45, Intel^® i211GbE (10/100/1000 Mbps), support Wake On Lan
显示 Video	1 x HDMI: max resolution up to 4096x2304@24Hz 1 x DP: max resolution up to 4096x2304@60Hz
音频 Audio	1 x Audio(Line-out&Mic-in 2 in 1) Realtek^® ALC888S HD Audio codec

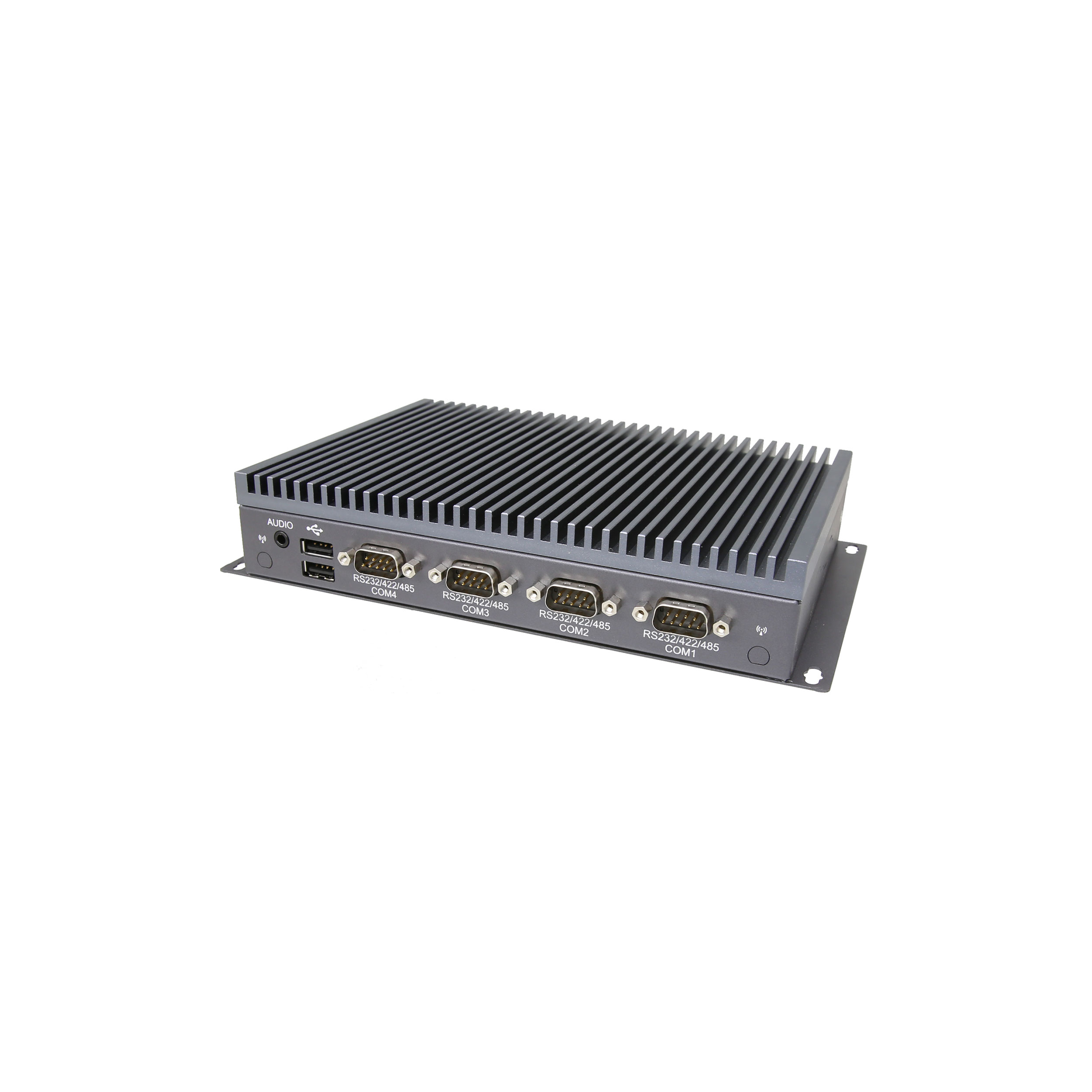

串口 COM	4 x RS232/422/485 auto-flow 2 x Internal RS232（optional by 3*3 pin-head）
USB	4 x USB 3.1 Gen2 2 x USB 2.0
按钮 Button	1 x Power button (White for Power-on, Blink for Sleep mode,Off for Power-off)
指示灯 LED	1 x Power LED (Green for DC-IN) 1 x HDD LED (Green blink for Data read or write) 1 x programmable LED (Green Default monitoring CPU temperature)

内部接口 Internal I/O

扩展接口 Expansion	1 x Mini-PCIe slot (PCIe/SATA/USB2.0 Singal Support） 1 x M.2 2230 Key-E slot (only supported CNVI WiFi module )
功放 Speaker	1 x Internal (3W 4Ω) Speaker pin-head
LPC	1 x LPC
GPIO	1 x Internal 8bit programmable GPIO pin-head
SIM 卡	1 x SIM Card socket for 3G/4G module

扩展模组 Extension module

Extension Module A (optional)	1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported) 1 x M.2 3042/3052 Key-B slot (5G communication module supported) 1 x eDP: max resolution up to 4096x2304@60Hz 1 x SIM socket for 5G module
Extension Module B (optional)	1 x Mini-PCIe slot (PCIe/USB2.0 Singal Supported) 1 x Internal USB3.0 1 x eDP: max resolution up to 4096x2304@60Hz [1]

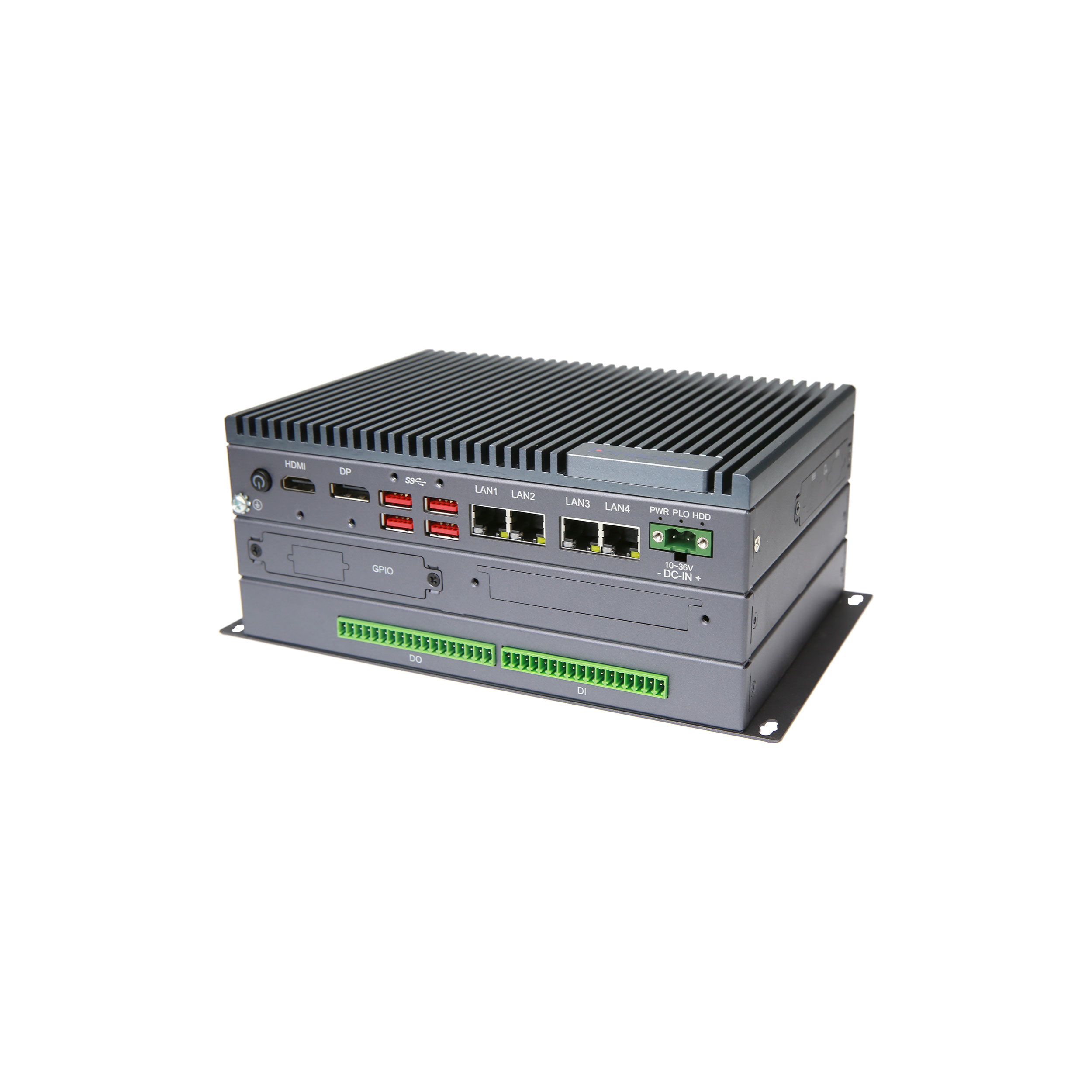

Extension Module C (optional)	1 x 32bit DI/O with optocoupler isolation DI 2500vrms, DO 2500vrms, response time ≤ 2ms, Output Frequency ≤ 500Hz, Maximum driving capacity 100mA, NPN or PNP by optional

环境 Environmental

操作温度 OperatingTemp.	-20℃ ~ 60℃(SSD), 0℃ ~ 40℃(HDD)
存储温度 Storage Temp.	-40℃ ~ 85℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
振动 Vibration	SSD: 5~500Hz, 5Grms operation (Only Use Solid state SSD) HDD: 5~500Hz, 1Grms operation
机械冲击 Shock	Operation: 50G@11ms（Only Use Solid state SSD） Non-operation: 30G@11ms

电源 Power

电源输入 Power Input

10~36V DC, 2-pin phoenix connector

机构Mechanical

外观 Housing	铝合金 Aluminum Alloy
安装方式 Mounting	Desk-Mount（桌面式） Wall-Mount（壁挂式） VESA-Mount (100 x 100mm)(optional)

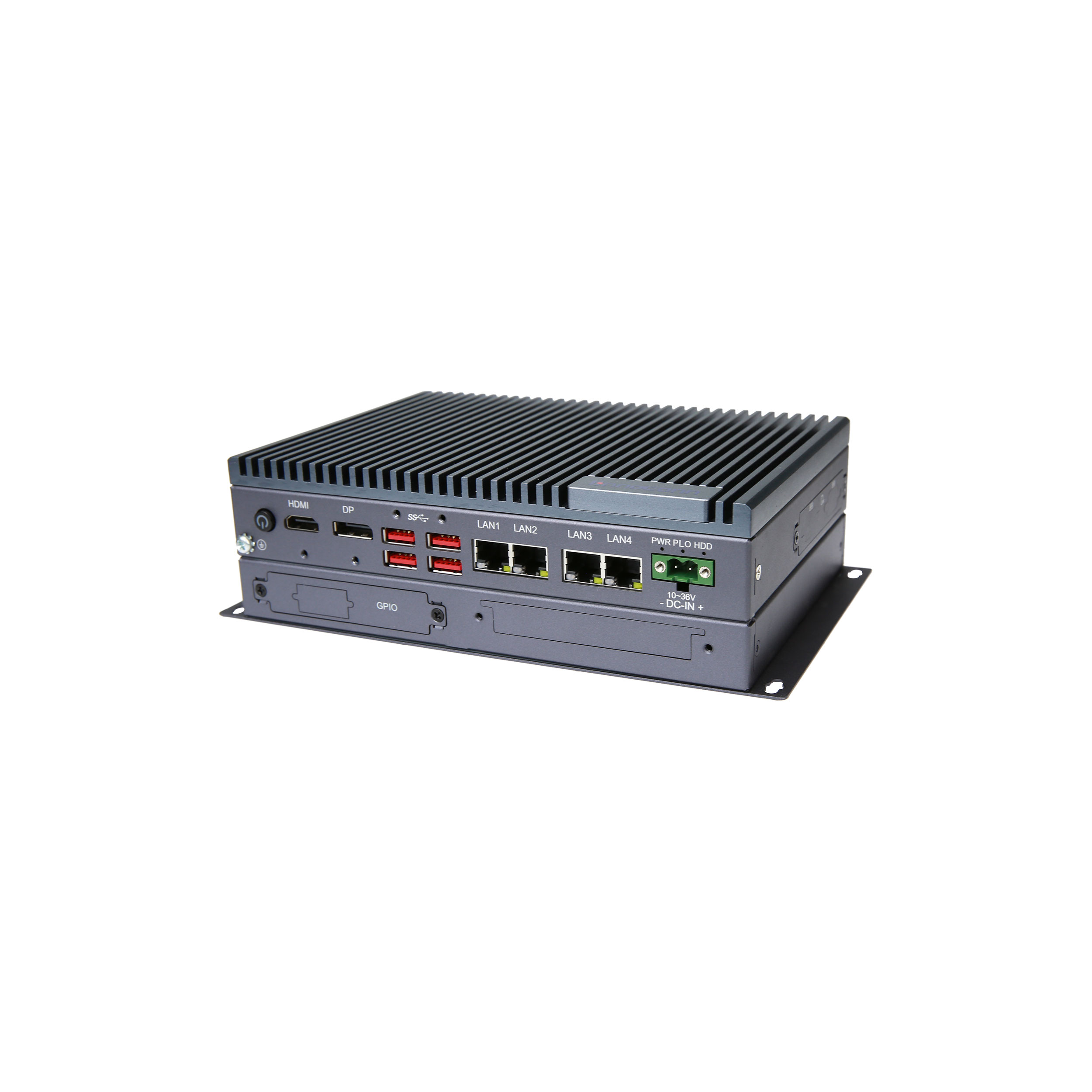

尺寸 Dimension	224 x 140 x 40.2 mm (基础型) 224 x 140 x 64 mm (一层扩展) 224 x 140 x 87.8 mm (二层扩展)
重量 Weight	1.35kg
