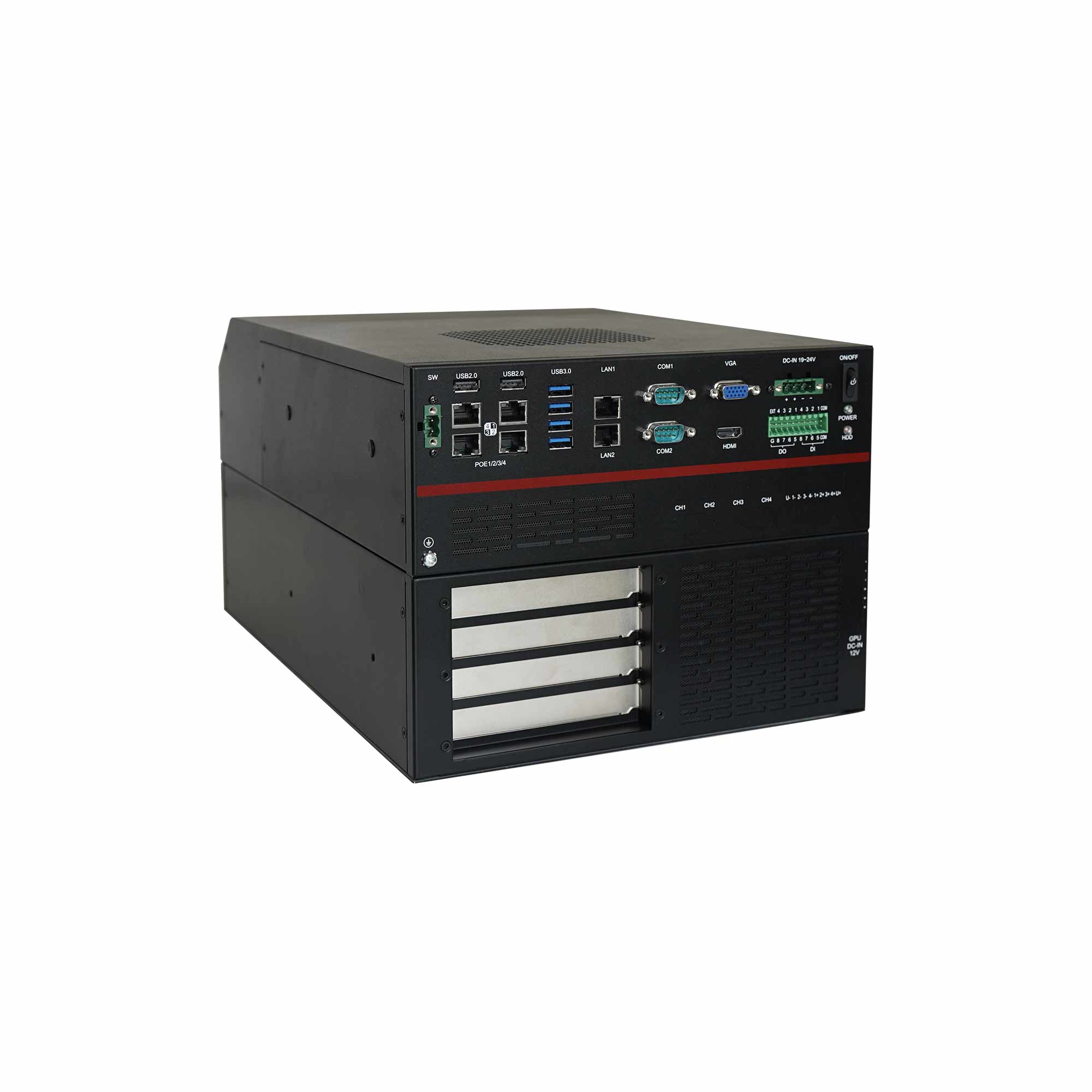

3U工控机 CEFS-EQ37-W624-PlusPX

Intel^® 第八/九代 Core™ i 台式机处理器（LGA1151针）Intel^® Q370 芯片组，6 cores max TDP 65W, 8 cores max TDP 35W
Intel^® 六口千兆网口，其中四口为POE网口, 单口最大功耗15W
VGA+HDMI 双显示输出
光源4路24V恒压，单路最大电流2.5A，总功耗最大70W
8路光耦隔离输入，8路光耦隔离输出（支持NPN/PNP切换)
2个2.5寸HDD/SSD 可抽取槽
1个Mini-PCIe 可配mSATA SSD或其它USB2.0/PCIe 信号扩展模块
4个USB3.1 Gen2, 4个USB3.0 Mini-PCIe扩展; 2个USB2.0板载，内置1个USB2.0 可接插加密狗
支持11个串口：1个板载RS-232/422/485 可调, 8个Mini-PCIe扩展RS-232/422/485;1个RS232,1个RS232(可选)
支持2槽扩展卡(选配) 包含 1 x PCI, 1 x PCIe X16
支持4槽扩展卡(选配) 包含 1 x PCI, 1 x PCIe X16, 2 x PCIe X4
支持宽压19-24V 输入，凤凰端子锁附，有过流过压反向保护
支持宽温：-10~50℃（无风流）
支持安装大尺寸显卡，最大尺寸336x146mm
安装方便：可拆卸上下盖，方便安装与更换key parts

产品介绍
详细参数
产品型录
驱动程序

产品介绍：

3U工控机, Intel^® 第八/九代 Core™ i 台式机处理器（LGA1151针）Intel^® Q370 芯片组，6 cores max TDP 65W, 8 cores max TDP 35W

系统 System

处理器 Processor	Intel^® 8/9 Gen. LGA1151 Core ™ i CPU 6 cores max TDP 65W，8 cores max TDP 35W
芯片组 Chipset	Intel Q370 PCH
内存 Memory	2 x DDR4 2400/2666MHz SO-DIMM, up to 64GB
图形 Graphics	Intel^® UHD Graphics 630
存储 Storage	1 x Mini-PCIe slot for m SATA SSD 2 x SATA3.0 connector for 2.5inch HDD/SSD
操作系统 OS	Windows 10, Linux
看门狗 Watchdog Timer	Programmable 255 levels timer interval, from 1~255 sec/min

外部接口 External I/O

网口 Ethernet	1 x Intel^® I211AT GbE (10/100/1000Mbps) 1 x Intel^® I219LM GbE (10/100/1000Mbps)
显示 Video	1 x VGA, max resolution up to 2048 x 1536@50Hz 1 x HDMI 1.4, max resolution up to 4096 x 2304@24Hz
存储 Storage	2 x 2.5" SATA 3.0 Bay for 2.5inch HDD/SSD, Q370 support RIAD 0/1
POE	4 x Intel^® I211AT GbE (10/100/1000Mbps) 802.3 af, max TDP 15W for each
串口 COM	1 x RS-232/422/485 BIOS adjustable & 1 x RS232 (On board) 1 x RS232(Cable expansion,Optional) 8 x RS-232/422/485 (Mini-PCIe card expansion,Optional)
USB	4 x USB3.1 Gen2 compatible USB 2.0 (On board) 2 x USB2.0 (On board) 4 x USB3.0 compatible USB 2.0 (Mini-PCIe card expansion,Optional） PS:Share DMI3.0 bandwidth from PCH, total 12Gbps on all ports
DIO	Mode: NPN/PNP (Switchable) 8in8out isolated DIO esponse time ≤ 20ms Input frequency: 1/2 Pin ≤ 200KHz, 3/4/5/6/7/8 Pin ≤ 500Hz High-voltage isolation up to 3000Vrms for DI & 2450Vrms for DO on all channels Driving capacity: 350mA max for NPN mode; 500mA max for PNP mode Support 5-24V isolated input on all channels
光源控制 Lighting Controller	4 Port lighting controller 24V output, PWM adjustment 0-100 levels brightness program adjustment 2.5A max current and 60W TDP for each channel, total 70W on all channels High-voltage isolation up to 3000Vrms on all channels Auto detect, dynamic tuning
电源按钮 Power Button	Power Button
指示灯 LED	1 x Power LED (Green for Power-on, Blink for Sleep mode, Off for Power-off) 1 x HDD LED (Red blink for Data read or write)
远程开关 Remote ON-OFF	1 x Remote ON-OFF

内部接口 Internal I/O

基础扩展接口 Regular slot	1 x Mini-PCIe, Co-lay with SATA3.0&USB2.0&PCIe X1 signal for multiple module expansion 1 x USB2.0 connector for internal dongle
可选扩展接口 ( 两槽扩展卡) Optional (2 slot expansion card)	1 x Mini-PCIe with USB2.0 signal 1 x M.2 3042/3052 Key-B, Co-lay with USB3.1 G2&PCIe signal 1 x PCIe X16 (GPU card Max size :336x146mm ) 2 x PCIe X4 1 x PCI 1 x SIM card for 3G/4G module 1 x SIM card slot for 5G module

环境 Environmental

操作温度 Operating Temp.	-10℃ ~ 50℃ 65W CPU Must have 2pcs 60*20 system fan
存储温度Storage Temp.	-40℃ ~ 85℃
湿度Relative Humidity	5% ~ 95%, 非凝结状态Non-condensing
振动 Vibration	SSD: 5~500Hz, 2Grms operation HDD: 5~500Hz, 1Grms operation
机械冲击 Shock	Operation: 10G@11ms Non-operation: 30G@11ms
电磁兼容 ESD	Contact 6KV, Air 10KV

电源 Power

电源输入 Power Input	19-24V DC，AT/ATX Default Power consumption: Typical 180W; Maximum 330W(Suggestion,not include in package) Phoenix lockable connector Protection of over current/voltage and ereverse
显卡电源 GPU Power supply	1. GPU card TDP ≤ 120W, share power supply with system from 330W adapter 2. GPU card TDP > 120W , Need additional power supply separate with system (developing)

机构 Mechanical

外观 Housing	铝合金 Aluminum Alloy
尺寸 Dimension	Four slot expansion model: 260 x 200 x 270 mm (W x H x D)
重量 Weight	Four slot expansion model: 7.5kg
安装方式 Mounting	桌面式 (Desk-Mount include horizontal and vertical)

认证 Certification

安规认证 Safety Certification

CCC
