产品介绍:

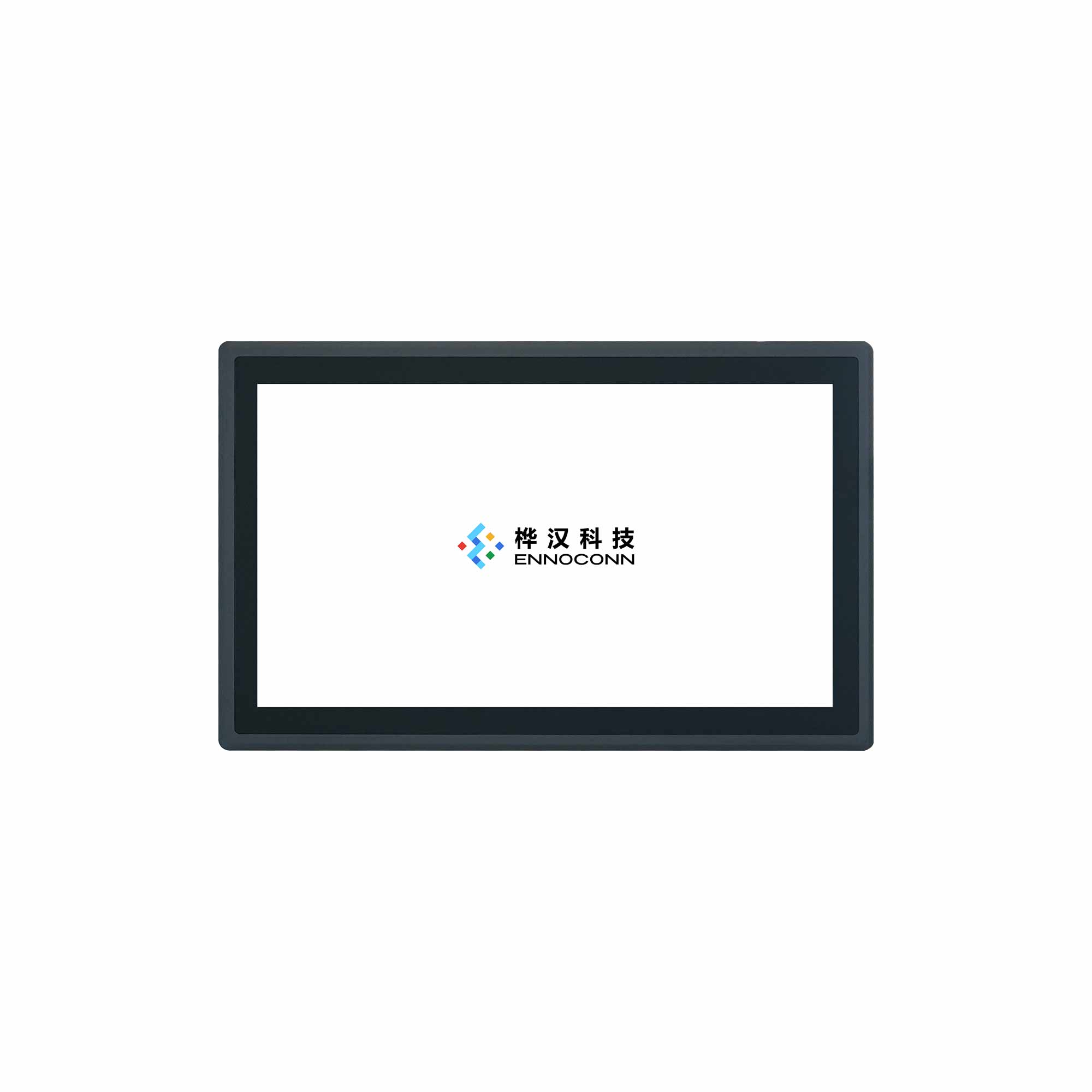

工业无风扇触摸一体机,采用18.5寸全平面五线电阻屏, 11代 Intel® Core™ Tiger lake U i7/i5/i3处理器
处理器 Processor | Intel®Elkhart Lake Celeron®J6412 processor (2.00 GHz) |
内存 Memory | 1 x DDR4 3200hz SO-DIMM slot, up to 32GB |
存储 Storage | 1 x M.2 2242 SSD slot |
图形 Graphics | Intel UHD Graphics 16 EUs |
操作系统 OS | Windows 10, Linux |
看门狗定时器 Watchdog Timer | Programmable 255 levels timer interval,from 1~255 sec/min |
尺寸 Size | 18.5 inches |
分辨率 Resolution | 1920(H) ×1080(V) |
屏幕宽高比 Ratio | 16:9 |
亮度 Brightness | 350nits |
可视角 Viewing Angle | 85/85/85/85 (Typ.)(CR ≥ 10) |
对比度 Contrast Ratio | 1000:1 |
背光 Backlight | LED Backlight |
背光寿命 Backlight Lifetime | 50000Hrs |
触摸屏 Touch Type | 10 点投射式电容屏 P-cap Multi-Touch |
触击 Touch | 35,000,000 times |
串口 COM | 1 x RS232/RS422/RS485-COM1 1 x RS232(default)/RS485(Jumper)-COM2 1 x RS232-COM3 |
USB | 2 x USB2.0, 2 x USB3.1 |
网口 Ethernet | 2 x RJ45, Intel® L225V GbE (10/100/1000 Mbps) |
显示 Video | 1 x HDMI (up to 4K resolution) |
音频 Audio | 1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC888S HD Audio codec 4Ω3W speakerx2 |
远程开关 Remote ON-OFF | 1 x Remote ON-OFF |
电源输入 Power Input | 1 x Power Connector (2P Phoenix) |
扩展接口 Expansion | 1 x Mini-PCIe slot (PCIe signal supported) 1 x M.2 2230 slot (WiFi supported) 1 x SIM socket 1 x 8bit GPIO 3.3V(jumper)/5V(default) power 2 x RS232 2 x USB2.0--For Touch 1 x SATA3.0/Power 5V for HDD 2 x RS232 |
前框 Front Panel | 铝 Aluminum |
铝挤 Heat-Sink | 铝 Aluminum |
底板 Rear Cover | 铁 SECC |
安装方式 Mounting | Panel Mount, Wall and VESA-mount (75x 75mm) |
尺寸 Dimension | 470.5(W) x 295.6(H) x67(D)mm |
建议开孔尺寸Cut Out | 457.5 x 282.6mm |
重量 Weight | 6.2kg |
操作温度 Operation Temp. | -10℃ ~ 60℃ (SSD), 0℃ ~ 40℃ (HDD) |
存储温度 Storage Temp. | -40℃ ~ 70℃ |
湿度 Relative Humidity | 5% ~ 95%, 非凝结状态 Non-condensing |
随机振动 Random Vibration | 5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation |
正弦振动 Sine Vibration | 5~500Hz, 2G Non-operation |
机械冲击 Shock | 10g 11ms operation, 30g 11ms Non-operation |
前面板防护 Ingress Protection | Front panel IP66 |
电源输入 Power Input | 12~36V DC |
安规认证 Safety Certification | CCC, CE, FCC |
