产品介绍:

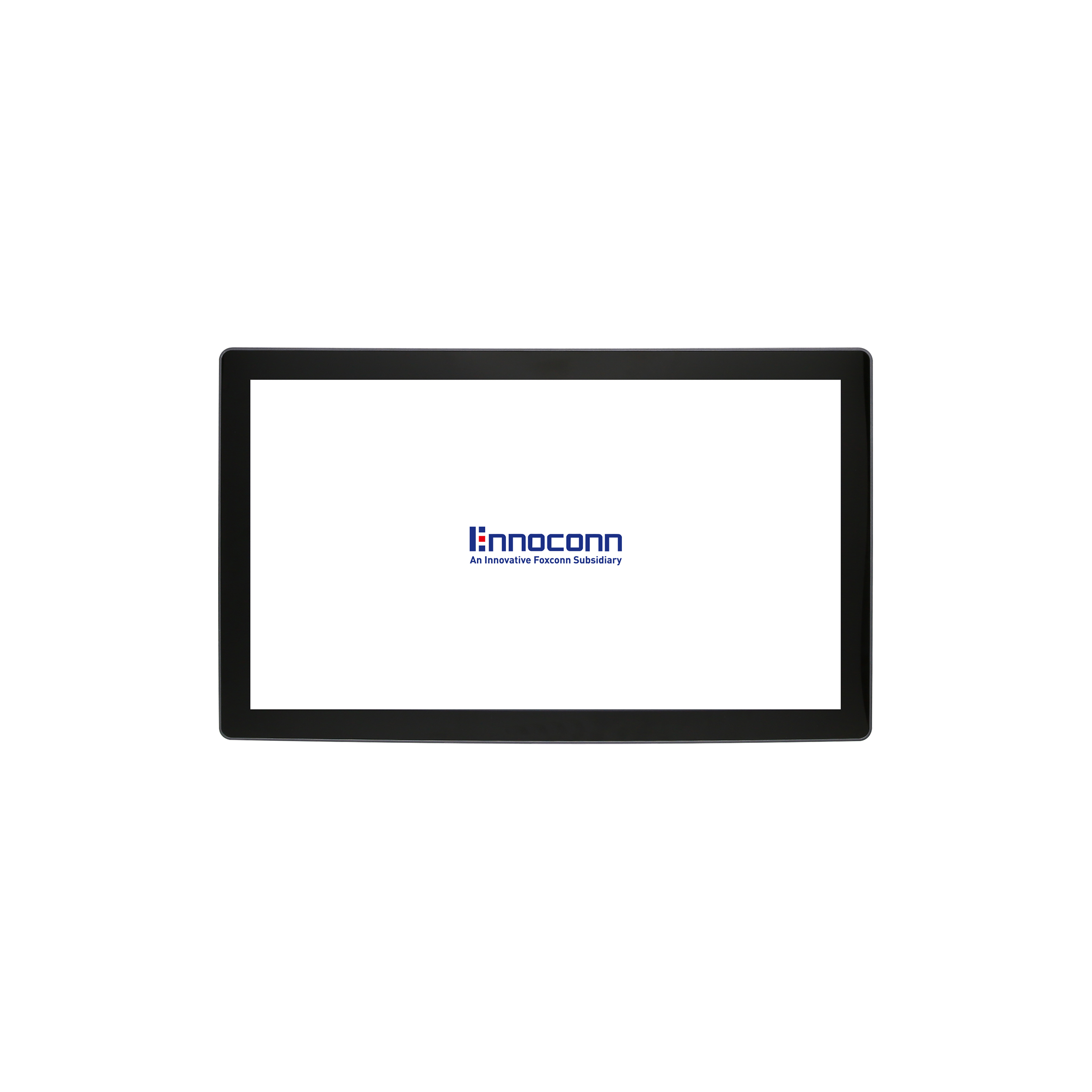

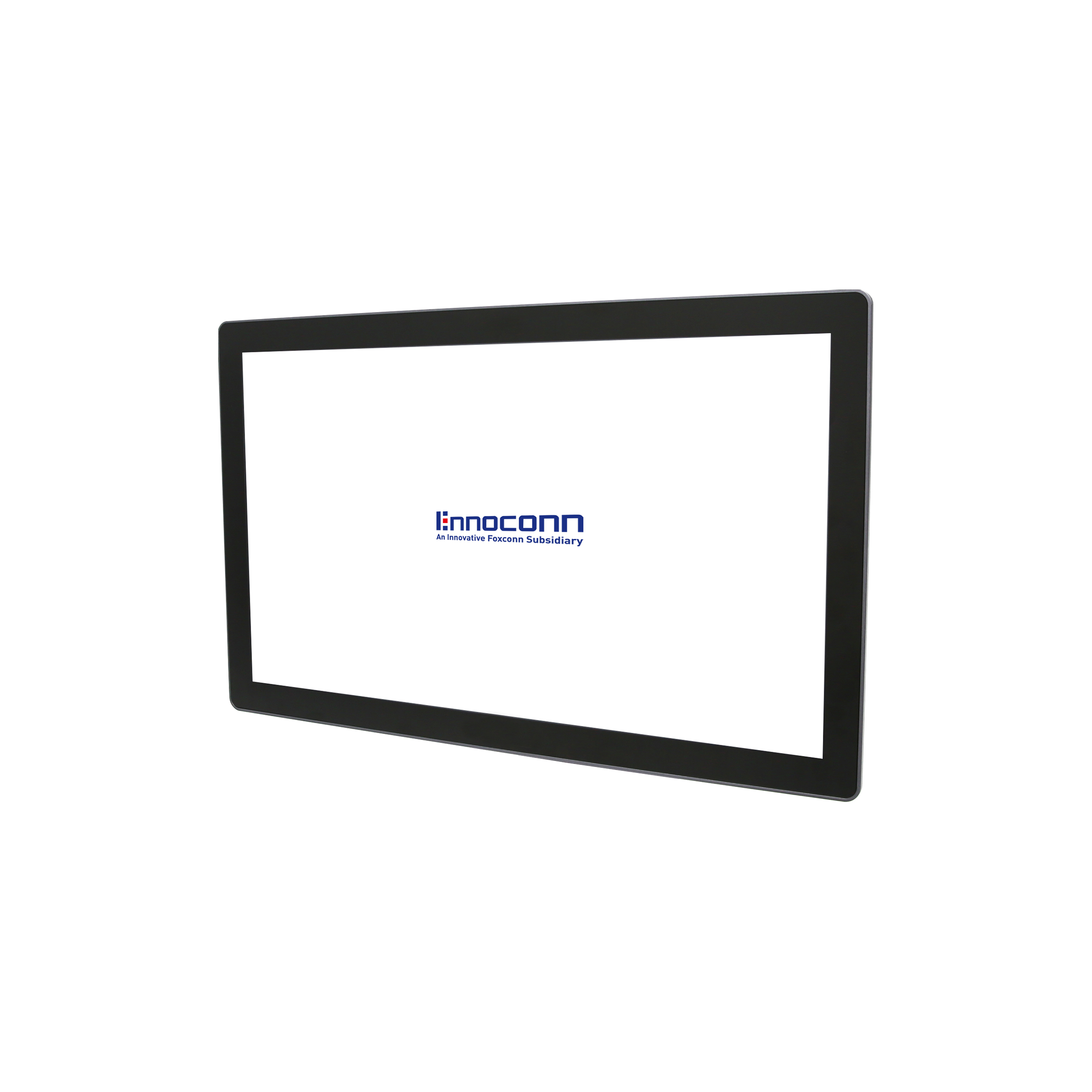

工业无风扇触摸一体机,采用21.5寸全平面10点投射式电容屏, 搭载Intel® H110 芯片组,支持 Intel® 6th Core ™ i7/i5/i3, 处理器(LGA1151)TDP 35W
处理器 Processor | Intel® Wiskey Lake-U i3-8145UE Processor(2.2 GHz, up to 3.9GHz) Intel® Wiskey Lake-U i5-8365UE Processor(4Cores, 1.6 GHz, up to 4.1GHz) Intel® Wiskey Lake-U i7-8665UE Processor(4Cores, 1.7 GHz, up to 4.4GHz) Intel® Wiskey Lake-U Celeron 4305UE Processor(2.0Hz) |
内存 Memory | 1 x DDR4 2133/2400MHz, up to 32GB(Celeron 4305UE support 2133MHz only) |
存储 Storage | 1 x SATA 3.0 HDD/SSD bracket 1 x M.2 2242 (SATA3.0/PCIe Gen3 x 4 supported) 1 x mSATA slot |
图形 Graphics | Intel® UHD Graphics 620 /Intel® UHD Graphics 610 (Celeron) |
操作系统 OS | Windows 10, Linux |
看门狗定时器 Watchdog Timer | Programmable 255 levels timer interval, from 1~255 sec/min |
尺寸 Size | 21.5 inches |
分辨率 Resolution | 1920 x 1080 |
屏幕宽高比 Ratio | 16:9 |
亮度 Brightness | 250nits |
可视角 Viewing Angle | CR>10, 89°(H)/89°(V) ; |
对比度 Contrast Ratio | 1000 |
背光 Backlight | LED Backlight |
背光寿命 Backlight Lifetime | 30000Hrs |
触摸屏 Touch Type | 10点投射式电容屏 P-cap Multi-Touch |
触击 Touch | 35,000,000 times |

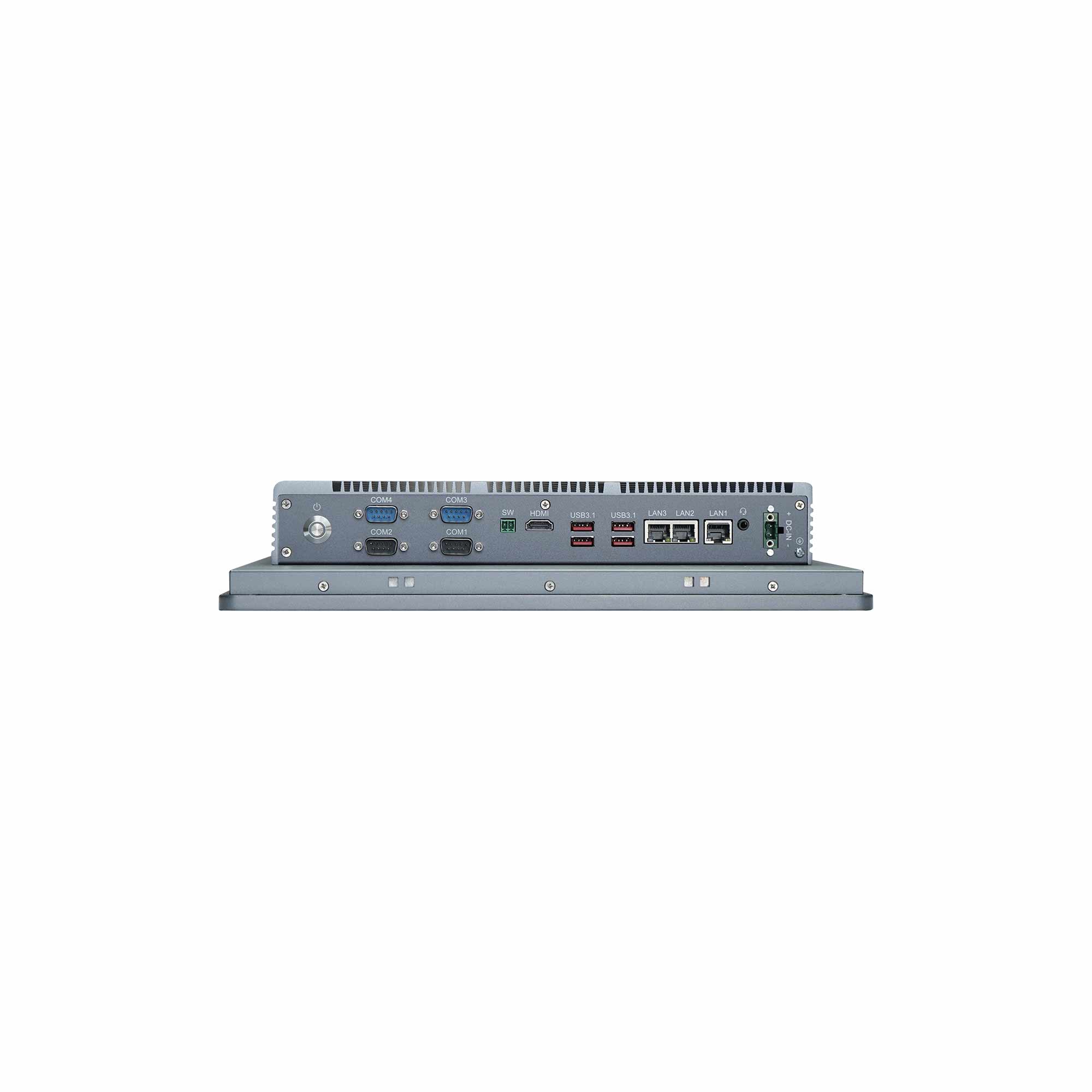

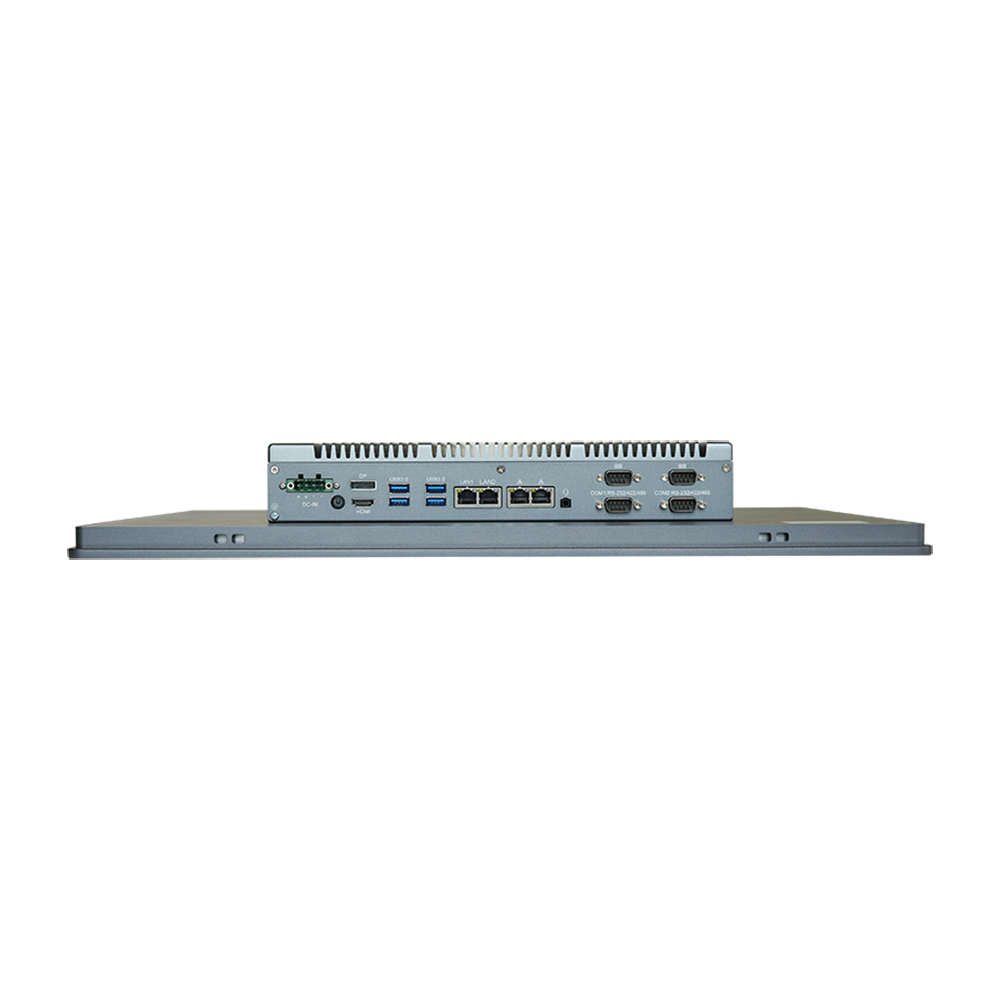

串口 COM | 2 x RS232/RS422/RS485(COM1~2) 2 x RS232(COM3 & COM4) |
USB | 4 x USB 3.1Gen2 (USB SR Pro supported) |
网口 Ethernet | 1 x RJ45 Intel® I219-LM GbE (10/100/1000 Mbps) 2 x RJ45 Intel® I211AT (10/100/1000 Mbps) |
显示 Video | 1 x HDMI (up to 4096 x 2160@24Hz) |
音频 Audio | 1 x Audio(Line-out&Mic-in 2 in 1), Realtek® ALC888S HD Audio codec |
扬声器 Speaker | 2 x Speaker Out (3W/4ohm) |
远程开关 Remote ON-OFF | 1 x Remote ON-OFF |
电源输入 Power Input | 1 x Power Connector (2P Phoenix) |
扩展接口 Expansion | 1 x Mini-PCIe (WiFi/3G/4G/mSATA supported) 1 x M.2 2230 (WiFi/PCIe/USB2.0 signal supported) 1 x M.2 2242 (SATA/PCIe X4 NVME SSD supported) 1 x SIM socket |
前框 Front Panel | 铝 Aluminum |
铝挤 Heat-Sink | 铝 Aluminum |
底板 Rear Cover | 铁 SECC |
安装方式 Mounting | Panel Mount, Wall and VESA-mount (75 x 75mm) |
尺寸 Dimension | 528.2 X 321.9 X 66mm |
建议开孔尺寸Cut Out | 520.2 x 313.9mm |
重量 Weight | 7.2Kg |
操作温度 Operation Temp. | -10℃ ~ 50℃ (SSD), 0℃ ~ 40℃ (HDD) |
存储温度 Storage Temp. | -40℃ ~ 70℃ |
湿度 Relative Humidity | 5% ~ 95%, 非凝结状态 Non-condensing |
随机振动 Random Vibration | 5~500Hz, 1Grms (HDD)operation, 5~500Hz, 2Grms (SSD)operation |
正弦振动 Sine Vibration | 5~500Hz, 2G Non-operation |
机械冲击 Shock | 10g 11ms operation, 30g 11ms Non-operation |
前面板防护 Ingress Protection | Front panel IP66 |
电源输入 Power Input | 9~36V DC |
安规认证 Safety Certification | CCC/FCC/CE |
